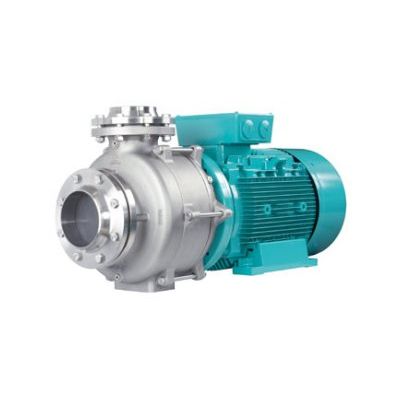

EDUR - Model Bloc FUB-CBF -Torque Flow Pumps
Torque-flow pumps in compact bloc-design for the transport of liquids being contaminated with solids or suspensions. Typical liquids to be pumped are waste water, cooling agents contaminated with metal chips, abrasive oils and lyes, lime milk and also products that have to be transported with care. Main application in sewage water plants, treatment systems, recycling processes, washing plants. filters, environmental and operation technique. All-purpose pump design insensiti- ve to cavitation conditions.
Most popular related searches
sewage treatment system
sewage treatment plant system
water cooling
sewage water
washing plant
lime milk
recycling system
recycling washing plant
water treatment system
sewage treatment plant
Process Reliability
- transport of liquids with solids
- insensitive to caviation conditions
- products are transported with care
- insensitive to plait and clot formation
Technical Superiority
- momentum transfer by means of recessed torque-flow impeller
- free passages up to 80 mm diameter
- anti-wear coating and other special executions
Easy Installation
- optional positions of installation
- compact pump design
Easy Maintenance
- pull-back design
- sturdy execution
Application
- operating pressure up to 10 bar
- temperature -40° C up to +140° C
- viscosity up to 60 mm2/s
- solids contents up to 15 %
