Teledyne - Model DM 700 -Toxic Gas Sensors

The intelligent plug-in, field replaceable cell provides automatic recognition of gas type and range, and features over-sized gold-plated connections that help prevent corrosion.

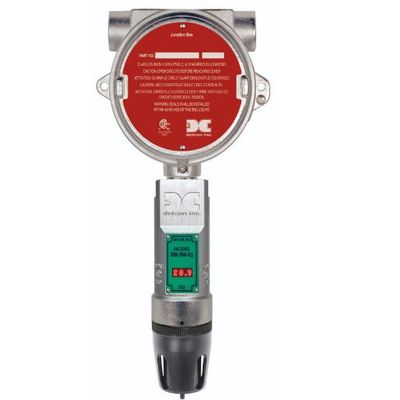

The Model 700`s rugged framework includes an intrinsically safe electro-polished 316 stainless steel housing with fully encapsulated electronics and dual layer surge protection.

This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration, and transient spikes.
A primary feature of the Model 700 is embedded intuitive software that simplifies operator interface by guiding the user through routine calibration, configuration, and fault diagnostic functions using a built-in alpha/numeric display.

The Model 700 is equipped with standard analog 4-20mA, and Modbus™ RS-485 outputs. Among its unique features is a wireless option that can be used with Detcon`s SmartWireless® product line. Additional integration options include a Remote Alarm Module (RAM) and HART.
Detcon`s toxic gas and oxygen sensors have a long shelf life and are supported by an industry-leading warranty.

• Oil & Gas
• Chemical Plants
• Food & Beverage
• Steel Mills
• Pulp and Paper
• Refineries
• Wastewater Treatment Plants
• Utilities

Failsafe User-Friendly Interface

• LED Display (With Antiglare Cover)
• Full Text Display Method
• Non-intrusive Interface
• Auto Zero/Auto Span
• Pre-emptive Fault Diagnostics

Environmentally Bulletproof

• Eleclropolished 316SS Construction
• 100% Epoxy Encapsulated Circuitry
• Bulletproof I/O Protection
• Water-Proof. Corrosion-Proof. Vibration-Proof

Modular and Serviceable

• Modular Design
• Plug and Play Components
• Quick Thread Release (For Sensor Replacement)
• Integral Calibration Port
