Tracto - Model MA09 -Mixing System

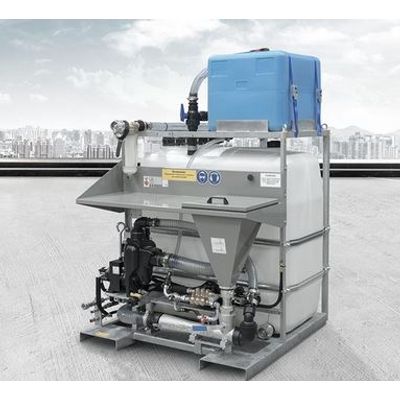

The compact and powerful Bentonite mixing system MA09 is an excellent choice for smaller fluid-assisted bore rigs like the GRUNDOPIT 40/60, GRUNDOPIT 6V, GRUNDODRILL 4X and other boring systems. The high circulation capacity of the mixing pump of 500 l/min ensures very quick mixing of the Bentonite fluid and only short interruptions during drilling. The small footprint of the system of only 1.45 x 1.40 m and an empty weight of only 370 kg make transportation simple.
Most popular related searches
mixing system
high-pressure pump
bentonite mixing
venturi injector
water tank
bentonite
water pump
compaction system
- Circulation pump for mixing 500 l/min
- Mixing tank with a volume of 1,100 l and internal distribution system
- Venturi injector nozzle
- High pressure pump with 60 l/min or optionally 25 l/min and 42 l/min at 50 bar
- Large Bentonite funnel for simple filling up
- Hot-galvanised basic frame with fork lift shoes and ring eyelets for transportation
- 200-l- fresh water tank (option), HP pump can be used for washing by switching over from suction to fresh water
- MA 09-40 can be combined with GRUNDOPIT PS60 and hydraulic unit HP37 resp. HP28
- MA 09-60 can be combined with GRUNDODRILL 4X and hydraulic unit TT-M9
