Traditional Big Bag

SHARE

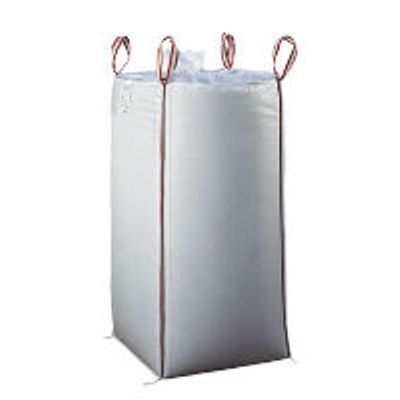

The traditional big bag is produced by sewing together polypropylene fabrics; in this way you obtain a parallelepiped with a square or rectangular base whose height must be between 0,5 and 2 times the dimension of the shortest base side, as ruled by UNI EN ISO 21898:2006 rules. The maximum SWL is 2.000 Kg.

Most popular related searches

From the point of view of the resistance, you can find two different sorts of big bags:

  • Disposable with a safety factor of 5:1 (the big bag put under breaking test must resist at least 5 times the SWL declared after a strain cycle of 30 times the SWL quadrupled).
  • Reusable with a safety factor of 6:1 (the big bag put under breaking test must resist at least 6 times the SWL declared after a strain cycle of 70 times the SWL quadrupled).

The fabric can be coated with a polypropylene film with the aim to make it waterproof.

Shape alternatives
You can find the traditional big bag in the following shape alternatives:

  1. Big bag with loading mouth open and edged and no discharge spout
  2. Big bag with top skirt and no discharge spout
  3. Big bag with circular loading spout and no discharge spout (special version with conical spout)
  4. Big bag with top skirt and circular discharge spout (special versions: conical spout – double spout – spout with pijama)
  5. Big bag with circular loading spout (special version: conical spout) and circular discharge spout (special versions: conical spout – double spout – spout with pijama)
