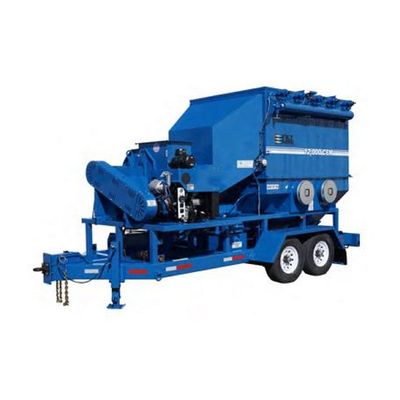

Filt-Aire - Model 12,000 CFM -Trailer Dust Collector

FromIndustrial Vacuum Equipment Corporation

SHARE

There’s no place out of reach of this Filt-Aire 12,000 CFM Trailer Dust Collector! In the mountains, in the shipyards, or downtown, just put it wherever you need it. This Dust Collector is available as a diesel or electric powered; mobile or skid; with hydraulically driven augers or gravity dump with drop legs.

Most popular related searches

filter cleaning system

magnehelic gauge

reverse air filter

fire extinguishing

fire extinguisher

air filter cleaning

filter cleaning

filter cartridge

MOBILE OR SKID MOUNTED: Heavy duty 4"x8" rectangular tube frame
TRAILER: Dual axle, 6000 lbs Torflex, with electric brakes
POWER SOURCE: Available in a diesel or electric powered model 48 HP, 1.86 Liter, Tier 4 Final Kohler engine
HIGH CAPACITY: Filtering capacity of 12,000cfm at 12" WG 5200 sq. ft. of primary filter area for an air to cloth ratio of 2.3:1. 20 side loading easy access vertical filtering cartridges

Solid state, programmable timer board for reverse air pulse filter cleaning system
High quality finish - epoxy primer & polyurethane top coat
DOT approved LED trailer lighting & reflective recognition tape
Standard one year limited warranty
(6) 16" inlets
Direct drive hydraulically driven uploading auger with cleanout
Steel engine shroud
60 gallon fuel tank
Magnehelic gauge
Bag clamp on auger outlet
Engine block heater 120 VAC

Gooseneck trailer
On board air compressor
Frac package
Arctic air dryer
Webasto programmable engine preheater
LED work lights
100 gallon fuel tank
40 HP electric motor 460/3/60
High static fan (14.5" WG)
8,000 lbs Torflex axles
Emergency engine shutdown
20 lbs ABC fire extinguisher
Cone vibrator (electric or pneumatic)
Cummins or Kubota diesel engine
56 HP, 1.86 L, Tier 4 Final Kohler engine
