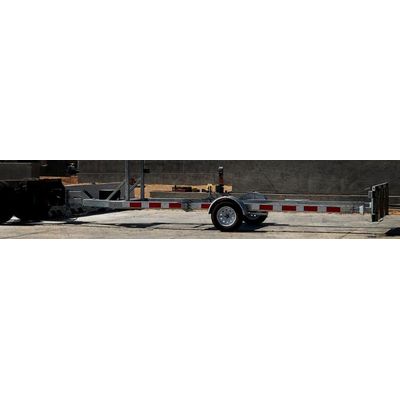

Gregory - Model TTMA-200 -Trailer Mounted Attenuator for Work Zone Safety
Designed for use in mobile and stationary work zones, the TTMA-200 helps to keep your most valuable assets protected in the event of a work zone intrusion. Its patented, energy-absorbing technology offers flexible performance at a competitive price and meets all required MASH TL-3 testing standards.
Absorb impacts. Protect assets. Save lives.
The TTMA-200 is made from galvanized steel and built for versatility. The single point pintle hitch mount can be used with most supporting vehicles weighing 10.000 lbs. (4.535.9 kg.) or more and can be switched between host vehicles in minutes. Its flexible configuration is easily adaptable to sweeping, salting, mowing and striping operations and can be equipped with optional items, including an arrow board, arrow board stand and hitch extensions.
- No host vehicle modification required
- Open frame system is easy to maintain and repair
- Anti-rotational by design
- No cartridges needed
- Versatile asset protection
- width: 96 in. (2.4 m.)
- Height: 39 in. (990.6 mm.)
- Length: 23.5 ft. (7.2 m.)
- Approximate weight: 1.450 lbs. (658 kg.)
- Approximate weight with an arrow board: 1.750 lbs. (794 kg.)
- Approximate tongue weight: 300 lbs. with arrow board
- Eight-ton pintle hook height: 19.5 to 32 in. (49.53 to 81.28 cm.)
- Galvanizing method: hot dip
- MASH compliance: passed test levels 3-50, 3-51.3-52 and 3-53
