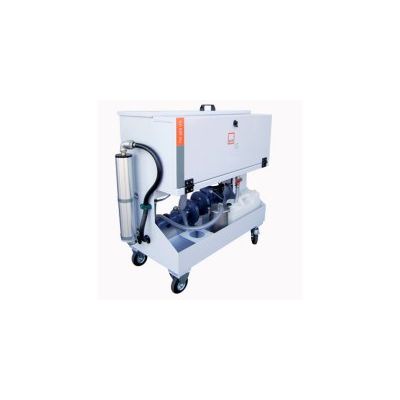

MKR - Model TM 450 UV -Tramp Oil Separator

SHARE

Specific Characteristics: Throughput 450 l/h, Pre Filter 350 µm, Stainless Steel Angle Section, Bacteria Reduction via UVC Irradiation.

Most popular related searches
tramp oil separator
oil separation
tramp oil
eccentric screw pump
recirculation pump
screw pump
waste disposal
oil coalescer
oil skimming
pump system

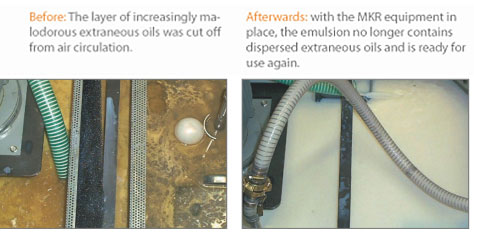

  • Extending the useful life (evaluated by appearance) of the emulsion and improvement of the odor
  • Bypass cleaning without stopping the machines
  • Lowering the costs of waste disposal
  • Short amortization period
  • Bacteria Reduction in cooling lubricants

Options

  • Recirculating Pump
  • Suction System with magnet base 60/100 strokes
  • Suction System with magnet base 110/180 strakes
  • Suction System Free Floating

Housing
Welded construction from 3 mm Steel sheet,
Outside- and inside double coating 2 way
2-K-varnish (NCS-S 2010-R70B)

Hoses
Suction hose, length 3 m, Ø 20 mm
D-coupler at the end of the hose
Recirculating hose - cleaned medium,
Length 3 m, Ø 32 mm, type Armorvin - HNA

Foreign oil separation
By coalescence collector
Feed pump
Suction pump eccentric screw pump 0,25 kW, 400 V, suction height 3m

Pre filter, for pump protection
Single filter spezial steel insert 350 μm

Feedback cleaned medium over the gravity
max. return - height 650 mm

Options

  • Different surface suction systems are available.
  • Recirculating pump for cleaned medium, recirculatingheight 3 m

Documentation
Operation manual, wiring diagram

We apply the coalescence principle to separate out extraneous oils. In the process, the rising light oil fraction of extraneous oils is skimmed from the surface using a floater. This fraction is then carefully transferred to an interim processing container. A special coalescence packet recovers dispersed oil droplets from the emulsion and returns them as clean and effective coolant back to your machine.

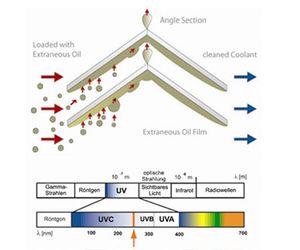

Functional principle of the coalescence separator

Tiny oil droplets are adsorbed on the surfaces of blade fins and coalesce to larger drops. The oil then rises up through special drill holes. This process allows the removal of even very finely dispersed droplets.

Functional principle of the UVC steriliser

UVC254nm: The special 254-nm UVC irradiation effectively controls the germ count.
