HF Jensen - Model TCAB -Transducer Conditioner Amplifier

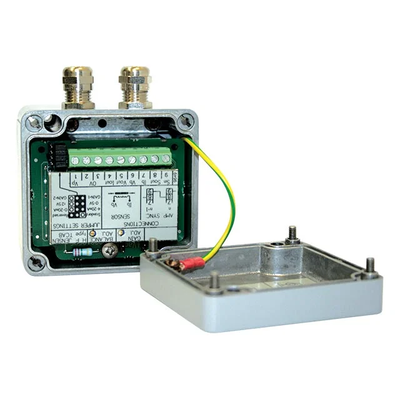

The TCAB signal conditioner and amplifier is designed to interface the HF Jensen inductive single coil line of displacement transducers, together performing a linear measuring system. The electronic includes an excitation stage, a differential input amplifier, a phase-sensitive demodulator, low-pass filter and output stages. Further it compensates for transducer temperature drift, measuring the coil temperature by DC-current, hereby achieving very low shift over a large temperature range.
The product will function over a wide range of supply voltage with no change in output and it offers various output signals configured by the user through jumpers. The layout, filtered and transient protected connections plus a metal shieldbox covering all sensitive components ensures high electromagnetic compatibility. The EMC is further enhanced through shielded cable glands in the outer aluminium enclosure. All this features a robust and IP65 tight unit compatible with most industrial environments.
- Works with all our single coil displacement transducers
- Many output configurations
- N/A
- Material: AISI 12
- Non-linearity: < 0.01 %
- Output signal: 0-20 mA, 4-20 mA, 0-5 V or ± 2.5 V
- Temperature range: -25 °C to +85 °C
- Supply voltage: 12-30 VDC
- Connections: Screw terminals
