Perma-Liner - Transitional Flex Liner

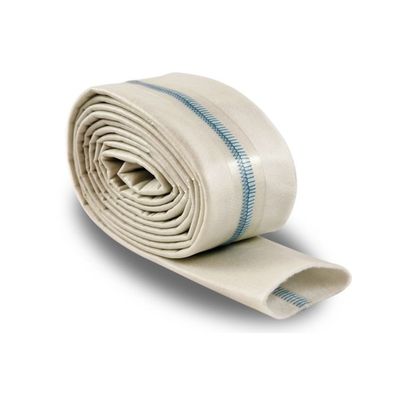

Perma-liner’s patented pending technology comprises of polyester non-woven fabric tube coated with super flexible TPU coating. This coating helps in smooth and easy installation due to its versatile thermoplastic characteristics that provides very high elasticity. Further elasticity helps in easy installation in smaller diameters at lower pressures and temperatures.
CIPP service area:
- Pipe diameter from 2 inch to 12 inch
- Perfect for bends 90°/45°
- Designed for steam curing
Diameter:
- Perma-liner covers diameters: 2, 3, 4, 5, 6, 8, 10 & 12 inches. Can be customized upon request.
Wall Thickness:
- 4 mm and 5 mm
Length:
- Standard Lengths: 330 feet. Customized lengths on request.
Compatibility with Resin systems:
- Epoxy resins
- Vinyl Ester Resins
- Polyester resins
Curing Method:
- Steam, Hot Water and Ambient.
Benefits
- Maximum coating elasticity
- Ease in installation using low pressure
- Excellent wet out characteristics
- TPU+ Polyester material configuration provides a high-temperature resistance
- Installation simplicity around bends.
