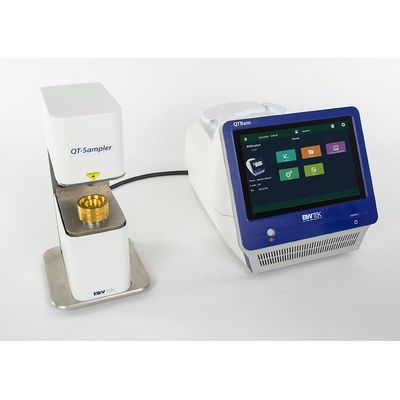

Metrohm QTRam - Model BWS475-785H-CU -Transmission Raman Spectrometer
FromMetrohm AG
The QTRam®, powered by B&W Tek’s STRaman® technology, is a portable transmission Raman spectrometer for quantitative analysis rapidly and nondestructively. It is designed for content uniformity testing of the active pharmaceutical ingredients (APIs) of solid-dosage products. The instrument is easily operated using the 21 CFR Part 11 compliant BWAnalyst® software for quantitative analysis on the embedded tablet computer. It`s compact size allows for at-line or lab analysis of the active ingredient content uniformity of tablets and capsules. BWS475-785H-CU.
Most popular related searches
raman spectrometer
raman
spectrometer
laboratory analysis
raman spectroscopy
raman spectroscopy system
portable raman spectrometer
spectroscopy system
portable raman
raman system
- Model: BWS475-785H-CU
- Laser Source: 785 nm, full power > 340 mW at the sample with software-adjustable power
- Software: 21 CFR Part 11-compliant BWAnalyst
- System Configuration: Transmission Raman
- Power: Input: 100-240 V AC 50/60 Hz, Output: 12 VAC at 6.6 Amps
- Dimension QT-Sampler: 33 cm x 17 cm x 18 cm
- Dimension Main Unit: 40 cm x 26 cm x 25 cm
- Weight Main Unit (kg): ~8.8 kg
- Weight QT-Sampler (kg): ~8.5 kg
- Operating Temperature (°C): 0°C – 35°C
- Humidity: 10% to 85%, non-condensing
- Spectrometer Range: 150-2800
