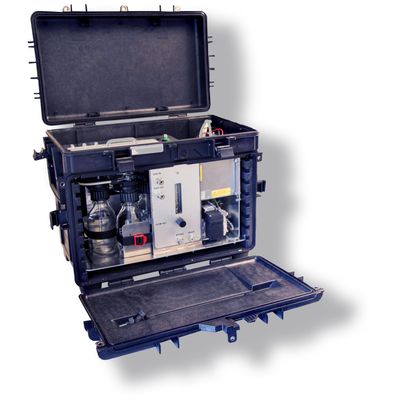

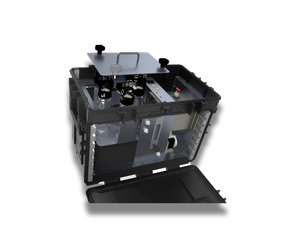

ETG - Model PSS 100 -Transportable Syngas sample pre -treatment
The biggest problem of Syngas analysis is the presence of "tars", which makes the sample gas extremely difficult to handle. Tar aerosols and deposits lead to frequent maintenance and repair and, if ignored, they can damage the sensors permanently, or make them less reliable. This can result in lower efficiency in process monitoring, thus to a potential economic loss for the end user. In gas analysis, it is important to have a clean gas to feed to the analyzer, and ETG PSS100 does exactly what it is needed: at first, it makes the gas flow through 3 washing devices, which remove the biggest part of the impurities, then it goes into a peltier chiller, which removes moisture, and finally there is a protection filter, to ensure that only clean gas will flow into the sensors. Everything is fitted into a single compact and transportable device, which is perfect for every need.Most popular related searches
sample gas
sample pretreatment
temperature probe
analysis system
plant science
gas analysis
sampling pump
process monitoring
gas sampling
sample transport
•Removes TAR, Dust & Water Vapour
• Universal users in sampling gas
• Transportable with 3 refillable bubbler
• Maintenance free cooler
• Inlet from process Hi-Temperature probe
• Peltier cooler with 1 heat exchanger
• Internal Sample pump
• Dry Sample gas Output at 5°C
• Low cost of ownership
- Syngas Plants
- Hythane Plants
- Research Center
- Syngas System Integrator
