TRAWAS - Portable Water Test Kit

• Integrated work area
• No need for any preparation before going into the field
• Easy to use; no special technical knowledge required
• One laboratory assistant on-site is sufficient
• Allows different microorganisms to be analyzed, depending on the nutrient pads
• Vacuum filter holder made of stainless steel, thus sterilizable by flaming
• No autoclave is necessary
• Just moisten nutrient pads with sterile water
• No freezer required for storage, storage of nutrient pads at room temperature
• Incubator with 2 chambers for different temperatures, digital display, 4 languages
• Automatic cooling if too high ambient temperature
• Various power modes with adapter available
• Optionally with memory to store up different test runs. Connection to PC for documentation

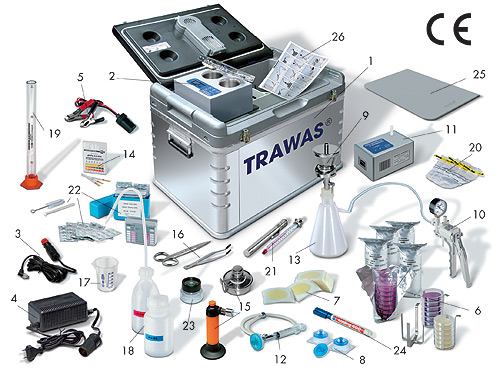

The complete kit consists of:

1. Electronically controlled coolbox, aluminium
2. Portable incubator INCUS .3 with heated lid and two stainl.steel racks No 180.053
3. Connection-cable, 12 V DC, with plug to coolbox
4. Power adapter 230 V AC / 12 V DC
5. Battery adapter, with crocodile clamps
6. Nutrient Pad Set, i.e. ENDO (acc. to choice)1)
7. Membrane filter, sterile
8. Minisart 0.2 µm, syringe filter unit
9. Vacuum filter holder stainless steel, 100 ml
10. Manual vacuum pump, large displacement, with gauge
11. Electrical vacuum pump VACUS.1 (optionally)
12. 3-way valve with disposable syringe
13. 1 liter vacuum bottle with tube and stopper
14. pH test strips
15. Alcohol burner, stainl. steel (alternatively: gas burner)
16. Scissors, Forceps, stainl. steel
17. Beaker, PP, 25 ml
18. Bottles for alcohol and water
19. Turbidity Tube, optionally
20. Bags, for collecting samples
21. Thermometer
22. Checkit® Chlorine
23. Magnifier, 7x (optionally)
24. Permanent marker
25. Working platform
26. Pictogram
27. Operation Manual, Engl., French, German, Span. (Russian under preparation)
