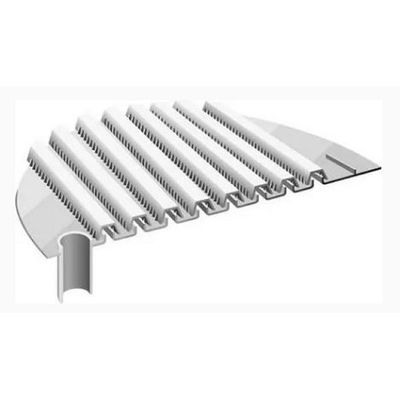

THORMANN - Tray for Scrubbing Processes and Vacuum Distillations
The THORMANN Tray is a tray for scrubbing processes and vacuum distillations. It is capable of processing even smallest quantities of liquid, e.g. from 40 l/(m² h) with minimum pressure drops of ca. 1 - 2 mbar per tray.
Most popular related searches
Properties:
- Suitable for small liquid loads (app. 40 Liter/(m² h))
- No weaping of liquid
- Extremely low pressure drops of ca. app. 1 mbar per tray are possible
- Extremely high tray efficiencies
- High flexibility
- Liquid-sealed tray design (e.g. for scrubbing processes)
- Special constructions for special applications
Applications:
- Scrubbing processes, such as for Caprolactam, hydrogen sulphide, hydrogen chloride, acrylic acid
- Long retention time trays for reactions
- Natural gas drying
- Fatty acid fractionation
- Rectisol scrubbing
Materials:
- Stainless steels, such as 1.4301, 1.4404, 1.4571, 1.4000, 1.4435, 1.4539, etc.
- Hastelloy C4, Aluminium, Copper, Titanium, Monel, Tantallum, etc.
