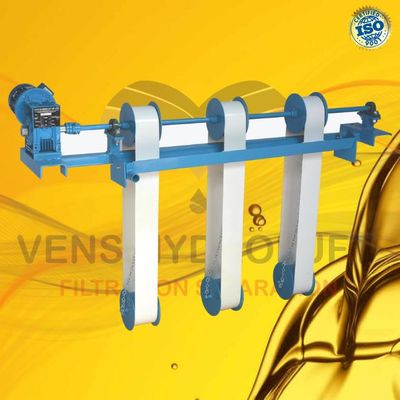

VH - Triple Belt Skimmer

Comes with an oleophlilic special polymer belt with smooth surface facilitating adhesion of floating oil in the tank to its surface on either side 3 phase AC motor coupled with Single stage worm gear box to impart low speed to the disc Rotating drum with knurled surface to impart low speed to the belt Wiper assembly with wipers made of teflon to wipe off the oil adhering to the surface of the disc on either side Weight placed at the bottom loop of the belt to provide enough tension to the belt while in rotation Supplied with three belts Standard Models, sizes and oil removal rates 4''width x 1000 mm length (or multiple) x 3 - 40 lph 8''width x 1000 mm length (or multiple) x 3 - 80 lph 12''width x 1000 mm length (or multiple) x 3 - 120 lph Specifications 1/4 Hp motor, 3 phase, 415 V, 50 Hz,1440 RPM coupled to the gear box and from reputed make such as Kirsloskar/Siemens/equivalent Materials of Construction Belt - Oleophilic polymer Frame – Mild Steel - Powder coated (SS if required)
