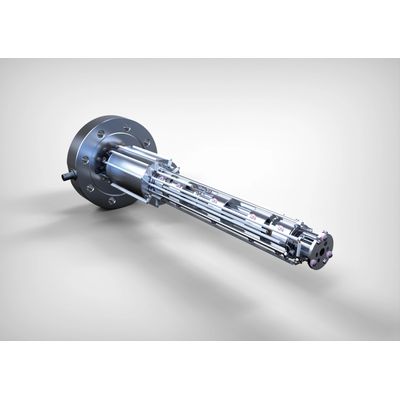

Hiden - Model 3F-PIC / 1000 Series PIC -Triple Filter Analysers with Digital Detectors System

3F Series analysers include an optional UHV compatible mass filter shroud and low profile ion source for close positioning to the desorption surface.

Both analogue and digital inputs are provided for synchronous acquisition start and sample temperature data display alongside mass channel data.

Multiple ion detection mode allows more than 100 channels to be monitored simultaneously, each with a unique set of MS parameters. Choose species from the internal library or via NIST MS database with direct import/export to MASsoft Professional software.

• Low profile ion source
• Fast data acquisition
• 500 data points per second
• Wide dynamic range
• 7 decade continuous log scale
• Gating input for pulsed gas studies down to 100 nano seconds gating resolution

• UHV TPD
• Surface science
• Single crystal studies
• Molecular beam studies
• Flash desorption analysis
• High performance RGA
• Desorption studies
• Bakeout cycles
• Process contaminants

Measures the concentration of gases and vapours in real time

• Mass range: 200, 300 or 510 amu
• Range of Shrouds: Liquid N2 or Water Cooled, Stainless steel or quartz
• Temperature control: Options to control Eurotherm PID units (RS485)
• Detector: Pulse Ion Counter
• Fast measurement speed: Up to 650 measurements per second
• Corrosive gas sampling options: Yes
