TA - Model LIQ-X- (H3) Series -Tritium in Water Monitor

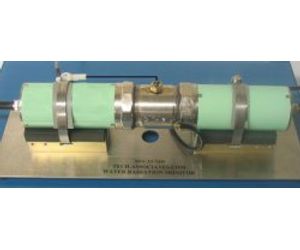

This system consists of a small light tight detector assembly which is interfaced with the sample via male 1/4` pipe fittings with the readout and processor assembly via two BNC connectors. The sample is passed through a deionizer and filter and thence to the detector assembly, where it is viewed by a matched pair of photo multiplier tubes. The table top or rack mounted processor and display portion of this system conditions and analyzes the output from the photo multiplier tubes by pulse height and coincidence, thereby permitting the system to eliminate counting most background (noise) counts.
LIQ-X (H3) includes unique statistical Significance Display.
This function rates strength of the data preventing most false positives or negatives:
- Significance: High, Low, Or Not Significant.
- On-board computer
- Real time - automatic
- Continuous monitoring
- Not influenced by other nuclides
- No liquid Scintillant required
- Easy calibration
- Sensitive to 20 μci/l tritium or up to 5 mci/l or more
- New statistical significance display
- USB / Ethernet ports
- Data archive & data retrieval
- Rugged, (optional - caster mounted)
- Monitor heavy water leaks in Candu Type reactors
- Monitor laboratory or plant liquid waste stream.
- Thorium reactor research
- Fusion reactor research
- Display Update: User Adjustable

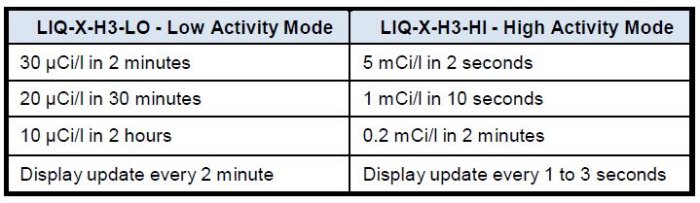

- Tritium Sensitivity: See chart above
- Range:
- LIQ-X-H3-LO: 10-100 μCi/liter
- LIQ-X-H3-HI: 0.1mCi/l - >5MCi/l
- Optional : Other ranges higher or lower.
- Flow Rate:
- Minimum: 1 ml/min
- Maximum:- 100 ml/min
- Temperature:
- Sample Temperature: Standard: < 80°F (liquid); (Optional - to 115°F)
- Ambient Temperature: Detector: < 80°F (Optional - to 115°F)
- Readout: < 115°F
- Lead Shielding: Optional 1" thick or 2" thick
- Dimensions:
- Detector: 4`‘ Dia x 19” Long
- Electronics: 10” H x 16” L x 19” W
- Weight(Standard Unit):
- Detector Housing: 20 lbs.
- Electronics Housing: 40 lbs.
- Shipping Weight: 90 lbs.
- 1” Shielding: 65 lbs.
- Display: 5” color monitor
Options
- Remote readout via Ethernet
- Network reporting and communication via the ORO overdrive software.
- Caster Mounted
