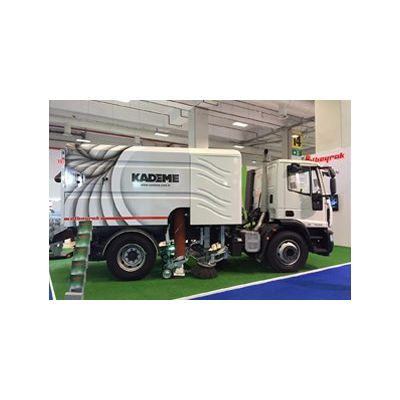

Kademe - Model 7,5m3 -Truck Mounted Sweeper

Engine Data

• Model: Tumosan
• Cubic Capacity: 4,5 LT
• Gross Rated Power: 4 74KW - 2200dev/dak(rpm)
• Max. Torque: 375 Nm - 1550(dev/dak)/(rpm)
• Operational Rpm: Ideal 1500-1600(dev/dak)/(rpm)
• Operational Rpm: Stage 3a

Control Panel

• Raised Hopper Warning
• Auxiliary Engine Hour Control
• Low level water indicator
• Engine Tachograph Meter
• Low level Hydraulic Indicator
• Control Monitoring System

Fan

• Model/ Type: Heavy Duty, Dynamically Balanced impeller with multivane corrosion resistance blades
• Design: Whisper Wheel Fan System
• Operation speed: Operational speed in between 2800-3500(rpm)
• Drive: Driven From Auxilary Engine Via Geartiox and For Smooth Transition Fluid Coupling or Dry Clutch is Used
• Gear box ratio: 1,8:1
• Construction: Stainless Steel AISI304
• Housing Liner: Opsional

Sweeping Equipment

• Side Brush: Ø650mm - 200(rpm) Hydraulic motor driven
• Middle Brush: Ø400mm - 160(rpm) Hydraulic motor driven
• Nozzle Diameter: Ø250mm
• Nozzle Width: 750mm
• Nozzle wheel Diameter: Ø 250mm

General Data

• Chassis Requirement: 15-20 Ton/Tonnes
• Wheelbase: 3600mm Standard
• Dump Height: 1050mm Standard and chassis dependent
• Dump Angle: 50°±5
• Door Opening Angle: 90°±5
• Filter Mesh Area: 1,1m2
• Dust Spray Pump Output: Up to 20LT & 100BAR (Piston Pump)
• Hydraulic Suction Filtration: 125 Micron
• Hydralic Return Filtration: 25 Micron
• Hydraulic Pump Displacement 16,8cc/rev
• Sweeping Speeds: 0-16km/h(Engine Dependent)
• Hopper Construction: Welded plane steel (Stainless steel Opsional)
• Dumping: Hydraulic to rear
• Sweeping width: 2450 mm
• Dual suction sweepeing width: 3500 mm

Optional

• Wander hose with boom and Trunking excess of 4 meters 1    ong
• High Pressure washing system (30LT/200BAR)
• Variable and Adjustable Side Brush speed
• Variable side brush positining system
• Simultanious Dual Suction,104kW Stage 3a Auxiliary Engine Gross power 104kW-2200(rpm)
