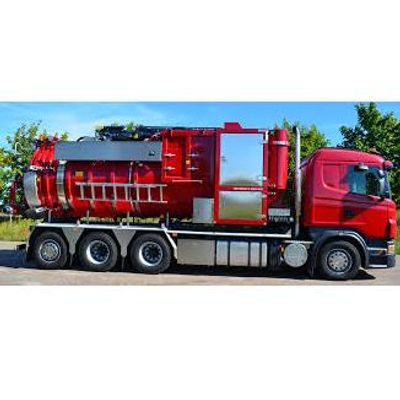

Disab Centurion - Model P20 -Truck Mounted Vacloader
This vacloader is driven by the truck’s engine and has suction and blow features. It has great flexibility for different applications with multiple add-ons available. Its round tank design makes it suitable for wet and dry applications and it’s often used in following industries: cement, steel, paper & pulp, energy etc.
A truck mounted unit that can transport bulk materials and liquids by vacuum or overpressure through a hose system with a diam up to 200 mm.
The unit is driven by the truck’s engine providing a compact high capacity machinery with the highest possible load capacity for a truck mounted unit.
The material tank and filter compartment are combined and the dust from the filter compartment is emptied through a hatch in the partition wall in the tank at the same time as the tank is tilted up.
Collected material is discharged by tipping the tank or pneumatically through a hose.
- Vacuum pump: 3-lobe roots pump
- Max vacuum, mbar: 950
- Max overpressure, mbar: 1100
- Air volume m3/h (unloaded): 8100
- Operation speed (rpm): 2650
- Power: 220
- Voltage Frequency, V/Hz: N/A
- Tank volume (m3)*: 10/12
- Total tank volume: 12,7/14,7m3
- Power source: Truck powered
- Engine type: N/A
- Tank material: Carbon steel / stainless steel / acid-proof steel
- Tank tipping: Hydraulic front cylinder, double acting system. Tailgate is hydraulically operated and locked.
- Main filter system (m2): 70 stainless steel cages with filter socks in needled polyester glazed surface. Filter area is 26 m2
- Safety filter surface(m2): 34
- Cooling air: Cartridge filter
- Atex: N/A
- Weight and Dimensions**
- Complete unit (including chassis): 23 000kg
- Total unit length including tuck chassis: 10 500mm
- Total width: 2 500mm
- Height (incl. hose boom): 4 100mm
