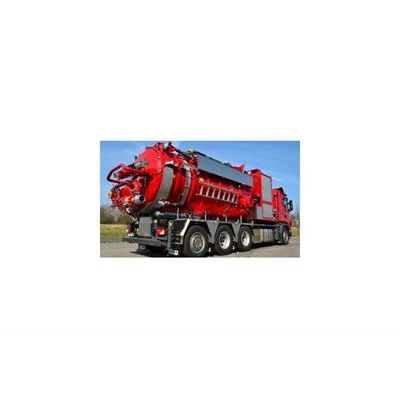

Disab Centurion - Model P30 -Truck Mounted Vacloader

A truck mounted unit which can transport bulk materials and liquids by vacuum or overpressure through a hose system with a diameter up to 200 mm.

The unit is driven by the truck’s engine providing compact high capacity machinery with the highest possible load capacity for a truck mounted unit.

The handled material may consist of hazardous material where ADR and GGVS regulations are applicable. Tank codes are L4AH and S4AH.

The material tank and filter compartment are combined and the dust from the filter is emptied together with the material from the tank via a filter hatch.

To achieve optimal flexibility when emptying, the tank is positioned in a special cradle for the rear part of the tank with a tipping axle and raised 1000 mm when tipping. This provides the unit with a variable high-tip. To stabilize the unit when tipping at the high-tip position, hydraulic support legs are mounted on the unit.

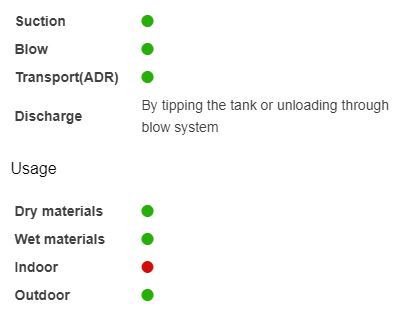

Collected material can also be discharged by tipping the tank or pneumatically through a hose.

• Vacuum pump: 3-lobe roots pump
• Max vacuum, mbar: 950
• Max overpressure, mbar: 1100
• Air volume m3/h (unloaded): 8100
• Operation speed (rpm): 2650
• Power: 220
• Voltage Frequency, V/Hz: N/A
• Tank volume (m3)*: 12
• Total tank volume: 14m3
• Power source: Truck powered
• Engine type: N/A
• Tank material: stainless steel / acid-proof steel
• Tank tipping: Hydraulic front cylinder, double acting system. Tailgate is hydraulically operated and locked.
• Main filter system (m2): 70 stainless steel cages with filter socks in needled polyester glazed surface. Filter area is 26 m2
• Safety filter surface(m2): 34
• Cooling air: Cartridge filter
• Atex: N/A
• Weight and Dimensions**
• Complete unit (including chassis): 25 400kg
• Total unit length including tuck chassis: 10 900mm
• Total width: 2 500mm
• Height (incl. hose boom): 4 000mm
