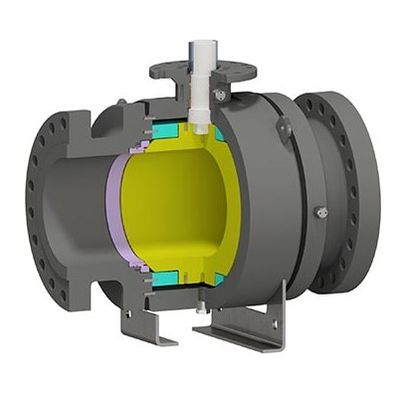

GWC Italia - Trunnion Mounted Ball Valve Welded Body
FromGWC Italia SpA
Welded Body, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Production range: API 6D: Size: 16” – 36” (DN400-DN900). Class: ANSI 600. Services: General / Sour / Corrosive / Erosive. Standard Temperature: -46 °C / 220 °C (-50 °F / 430 °F).
Most popular related searches
trunnion mounted ball valve
drain plug
fugitive emissions
ball valve
trunnion mounted valve
quarter-turn ball valve
drain vent
welded ball valve
gas valve
- API 6D
- ASME B16.34 / ASME VIII
- ISO 14313 / ISO 5208
- ASME B16.5 / B16.25 / B16.47 / B16.10
- MSS SP 25 – 44
- API 6D
- EN 14141 – Valves for gas transportation in pipelines according to EN 1594
- ISO 15848 – Measurement, Test and Qualification Procedures for Fugitive Emission
- API 607 / API 6FA / ISO 10497
- PED – 2014/68/UE
- ATEX 2014/34/EU
- SIL 3 – IEC 61508:2010
- TR-CU 010 / 012 / 032
- American Bureau of Shipping (ABS) Product Type Approval
- Trunnion Mounted
- Vent Bleeder / Drain Plug
- Antistatic Device
- Stem Sealant Injection and Seat Sealant Injection Firesafe to API 607 / API 6FA
- Anti-blowout Stem
- Double Block and Bleed Design (DBB)
- Seat Combination SR Seats / DPE Seats / SR x DPE Seats
- Metal Seated or Soft Seated
- O-Ring or Lip Seal Sealings
- Valve Bore / Face to Face / Special Ends Flanges according to customer requirements, including Hub, NORSOK, etc.
- Special Vent & Drain
- Corrosion resistant weld overlay on sealing surfaces or all wetted areas
- Stem Extension or Extended Bonnet
- Interlocking System
- Transition and Pup Pieces
- Suitable for Horizontal or Vertical Installation
- Manual or Actuator Operated
Other features are available on request.
