TSE - Model 2003 -Beam Flip

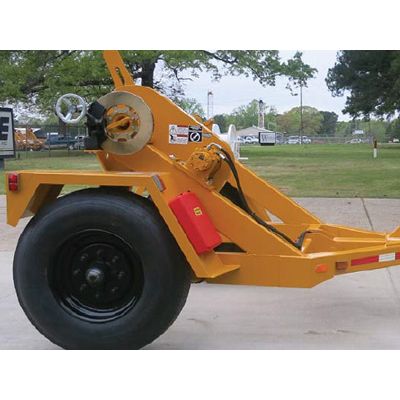

The Beam Flip Model 2003 self loading reel carrier is designed to transport a loaded conductor reel and release conductor under lost tension in distribution line stringing. The unit incorporates a hydraulically pivoting frame, which facilitates reel changes.
Most popular related searches
DIMENSIONS & WEIGHT
- Length (Approx): 17’-9”
- Width (Approx): 8’ - 6” (outside of fenders)
- Height (Approx): 4’ - 9”
- Weight (Approx): 3,200 lbs.
REEL DIMENSIONS
- Maximum Diameter: 96”
- Maximum Width: 54”
- Maximum Weight: 10,000 lbs.
- Spindle Diameter: 2 5/8”
- Over Spin Brake: 16” Mechanical disc type
OPTIONS
- Hydraulic Rewind
