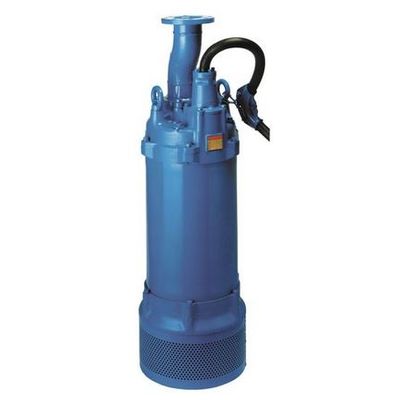

Tsurumi - Model LH & LH-W -3 Phase High Pressure Submersible Pumps
Tsurumi has a huge range of submersible pumps, with more than 25 different pump types, this submersible pump specialist has a pump for almost any application, from light domestic usage to heavy duty industrial applications, model dependant Tsurumi submersible pumps can be supplied either free standing or with a guide rail system consequently suitable for fixed or mobile applications, must pump models can be supplied with optional float-switch.
- Pump Type - Submersible
- Max Flow Rate - 390M³H
- Max Head - 216M
- Max Temp - 40°C
- Max Viscosity - 200 cst
- Max Solid Passage - 20mm
- Self Priming - N
- Pump Materials - Cast Iron, Ductile Iron
- Inlet/Outlet Sizes - 50mm to 200mm
- Drive - AC Electric
- Max Suction Lift - 0
LH & LHW 3 Phase High Pressure Submersible Pumps
- Flow Rate Up to 6,500 l/min
- Head (Pressure) Up to 216 metres
- Sizes Available 50 - 200mm
- Solids passage Up to 20mm
- Drive Options / Power Electric Motors / 400V
- Operating Temperature Up to 40°C
Models available in both single and 3 phase supply, upon request 60 Hz pumps are also available.
Our Tsurumi submersible pumps are available with a variety of impeller types to suit a number of applications and fluids from domestic clean water distribution to industrial sewage, sludge and slurry transfer, depending on the model specified these submersible pumps can handle a max. liquid temperature of 40°C and has a max. solids passage of 100mm.
Tsurumi submersible pumps are available with a variety of different impeller types, sealing options and construction materials.
The Tsurumi LH & LH-W pump range is a high pressure dewatering submersible pump capable of achieving up to 21.17 bar and with a max. flow rate of 390 m³/h, these pumps are supplied with a hard ductile iron pump casing and cast iron motor casing, the LH & LH-W range is commonly used in mining, quarry and deep excavation projects, these high head dewatering submersible pumps are supplied with a chromium iron impeller and dual hard face mechanical seal (silicon carbide – silicon carbide).
IDS - (Individual screened cable) available at extra cost – (For quarry and mining applications)
Supplied in 400V 3 phase supply only.
- High pressure dewatering submersible pump – up to 21.17 bar
- IDS - (Individual screened cable) available upon request
- Double mechanical seal - silicon carbide – silicon carbide
- 20mm max. Solids passage
- Liquid temperature up to 40°C
- Supplied with dual hard face mechanical seal - in oil bath/chamber
- Compact design and robust construction
- 60Hz frequency also available upon request
- Construction sites
- Mines and quarries
- Tunnelling
- Dewatering
- Deep excavations
