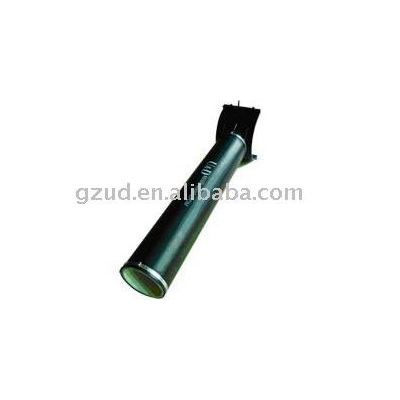

Tube Membrane Bubble Diffuser

Specification:

1. Tube-UD95.
2. Membrane: EPDM.（Ethylene-Propylene-Diene Monomer）
3. Length: 94*500mm/94*750mm/94*1000mm
4. Aerator surface area: 0.2983 m2
5. Bubble diameter:0.8-1.9mm
6. Membrane service life: Above 5 years
7. Standard aeration rate: 10 m3/h
8. Aeration scope: 5～20 m3/h
9. Standard oxygen transfer efficiency: ≥40% (6m water depth)
10. Working area: 1.0～3.0 m2/pcs

Features:

1. High oxygen transfer efficiency.
2. Low pressure loss.
3. Wide air flow range.
4. EPDM rubber membrane resists corrosion and aging
5. UPVC engineering plastic, PP and glass fiber.
6. The most appropriate bubble volume, and even bubble distribution
7. Aeration system with extremely low buoyancy design
8. Flexible point system design
9. Fast and simple installation method saves lots time and cost. inserting one is more convenient to install than the screw one
