Bubble Diffusers
Activated sludge wastewater aeration, Industrial wastewater treatment, Oxygenation for sludge stabilization, Aeration of ponds
Tube Membrane Bubble Diffuser
New design tube diffuser with joint board

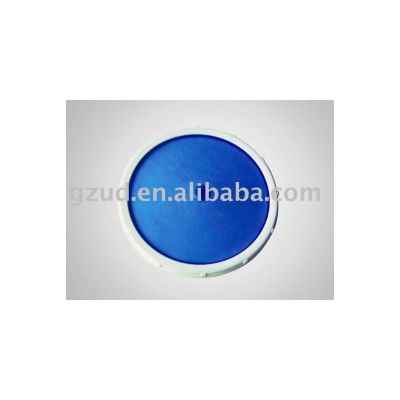

Disc Membrane Aerator
Membrane: EPDM 3/4". Diameter: 270mm(Standard 10"). Aerator surface area: 0.0531 m2. Bubble diameter:0.8-1.9mm.
Wastewater Aerators
Membrane: silicone 3/4". Aerator surface area:
Standard sludge dryer/mud dewatering equipment for sewage treatment
I Product Overview Standard sludge dryer is used to dry sludge with dry air so that sludge will reduce in weight and size. It is suitable for industrial plate-and-frame filter press. After cake-shape sludge from filter press drops into the drying groove, it is dried by dry air, and then unloaded from the groove. The dryer needs minimum maintenance, and drying process is free of smell. II Features and Advantages 1.The solid rate of sludge drying is up to 90% After drying, the size of dried sludge is only 1/4-1/5 of the original size; the water content is below 10%, microbial activity is completely restricted, avoiding mould and smell; the heat value of sludge with a water content of 10% is 3000kcal/kg. 2. Drying system safety is improved. Safety factors that must be controlled include: oxygen content <12%; dust concentration <60g/m3;particle temperature <110℃。The entire drying process is free of dust (air flow rate<2 m/s); drying temperature is at around 40℃; The whole drying proSludge Dryer
Low Temperature Sludge Drying system for sewage treatment
I. Overview on drying technology The injected low temperature air dry the sludge with a circle way. Through the sludge layer, the dried air(20% r.H) that is heated up to 50℃ generate wet air(30℃，99% r.H), which condensate and remove the water on the dryer, and then heat the air flow again on the condenser. The dried air moves circularly in the system, and dried air flow moves in the closed-loop, and the waste is removed during the water condensation, so the fetor prevention device is no need. II. Technology advantages 1.Sludge contains 10% water after drying 2.Low temperature operation, low power consumption, low operation cost, and without waste air drain 3.Break the cell wall by spectrum technology 4.Durability and resistance, easy operation, free pilots cale experimentBelt Sludge Drying system /industrial sludge treatment
Belt sludge dryer removes water of sludge on the conveyor belt in drying channel by circulating dry air so as to reduce the size and weight of sludge. The product can treat sludge from belt-type, centrifugal, and plate-and-frame dehydrators. Dehydrated sludge is distributed on ventilated conveyor belt which slowly moves forward, and then water of sludge is evaporated by continuously circulating dry air. The whole drying process is finished in a sealed environment from which smell and dust will not escape.high temperature sludge dryer /heating sludge dryer
Sludge dryer dry the sludge by heating power, the dried sludge is in pellet or powder, whose diameter is below 5mm. The dryer has a efficient heat sterilization as the activity of microorganism, whose water content is below 10%, is suppressed to prevent the sludge from being smelly. After drying, sludge contains 1400~1700 calories so that abundant creature and fiber in it could be used as fuel to kill the pathogens completed and decompose the poisoned organic remains. Finally, the reutilization of remains and cinders could prevent sludge landfill or other treatment ways from bringing secondary pollution.
Cabinet sludge dryer /sludge dehydration
I. Product Overview Cabinet sludge dryer dries sludge in a semi-continuous way to reduce sludge weight and size. It can be used together with plate-and-frame filter press. After cake-shape sludge from filter press drops into the drying cabinet groove, it is dried by dry air, until the whole cabinet groove is full of sludge. The dryer will operate automatically, and monitoring is not needed. II. Technical Features Drying capacity is 0.06-20 ton/day , the content of dry solid in inlet sludge is greater than 25%. Energy consumption: 0.33kWh/kg of water the content of dry solid in outlet sludge is up to 90%
