Amfor - Tubular Anode Cell Membrane
AMFOR Tubular Anodes Cell is a flushable anode Cell used in electro coating (ED) paint system with most types of paint. It serves as the opposition electrode and simultaneously removes solubilizer (usually a common organic acid) from the paint to maintain chemical balance. AMFOR`s Anolyte Injection Systems distribute the anolyte evenly across the anodes in anocel box and semi-circular. And the delivery system in Anocel tubular cells increases dirt and oxygen removal by a minimum factor of three over conventional designs.
Other customer benefits include:
- Safe and Esay Handing
- Hard to Damage Design
- Low Electrical Resistance
- Quick and Easy Inspection Procedure
- Maintenance Friendly
AMFOR Tubular Anode Cell Models
AMFOR Tubular Anode Cell available in the standard model ADTA-50 Series
AMFOR® patented Anolyte Injection SystemsTM(AISTM) with rifled delivery, preexpanded membrane construction and overall structure improvements will reduce both operating and anode replacement costs. Installation of products is also available.This ground-breaking line of high-performance, highly reliable anolye prodces includes ADTA-50 series Tubular Cells. Standard 316L stainless steel anodes standard, other types are available.

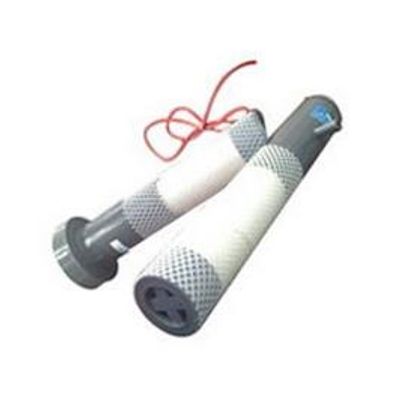

ADTA-50 Tubular Anodic Cell Series
ADTA-50 series products are made of excellent fittings from USA. The congener products can be fixed in
side, bottom and top of paint tank. The standard tubular cell material is SUS316L.
- ADTA-50 Series:
- Electrode Diameter: 1.9inch(48mm)
- Electrode Cap Diameter: 2.65inch(67mm)
- Electrode Area per Length: 0.15m2/m
- Membrane Area per Length: 0.21m2/m
- Current Endure: 50A/ft2
- Anodic Liquid Flux: 1.12l/min/m
