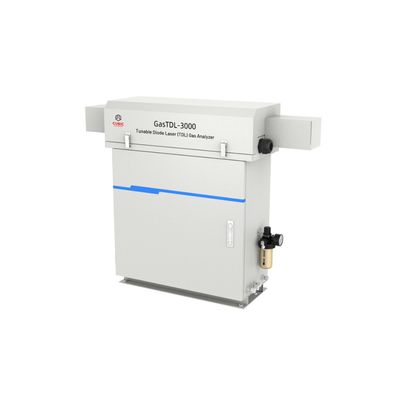

Cubic Instruments - Model GasTDL-3000 -Tunable Diode Laser (TDL) Gas Analyzer

• High-precision: Using specific laser wavelengths for measured gases, GasTDL-3000 can respond faster to ultra-low level gases and accurately detect specific components from gas mixtures without cross-interference.
• Ultra-low range measurement: Using multiple reflection gas chambers, providing longer optical paths and lower detection limits.
• Extractive method: Effectively reducing the influence of dust, temperature, and pressure fluctuations in the flue.
• Good environmental adaptability: Suitable for high-temperature, high-humidity, strong corrosion, dusty and other harsh environment.
• Easy installation: Compact wall-mounted design adapatble for different site installation conditions.
• Low maintenance frequency: Easy to use and calibrate, no professional operator required and no cumbersome maintenance needed.

Performance Parameter
Measurement Components: NH3, HCL and HF
Measurement Principle: TDLAS
Measurement Range
NH3: Min: 0-20ppm, Max: 0-10000ppm
HCL, HF: Min: 0-100ppm, Max: 0-10000ppm
Resolution: 0.1ppm
Precision: ±2% F.S.
Response Time: ≤20s
Zero Drift: ≤±2%FS

Working Parameter
Working Temperature: (-10~+55) °C
Working Power Supply: 220V AC, 50Hz
Backflush Gas: Clean and Dry compressed gas without oil
Warm-up Time: 30min
Heating Temperature: 190°C

Interface Signal
Communication: RS485, RS232
Output Mode: 4-20mA, Max load 900Ω,relay output

SCR/SNCR, coal-fired power plant, aluminium manufacturer, glass plant, cement plant, fertilizer plant, waste incinerat
