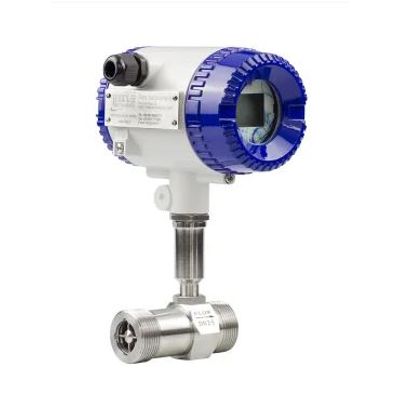

RIELS - Model RIF200C -Turbine Flow Meter
The RIF200C is a turbine flow meter with an integrated display on the measuring body. It is designed to measure low-viscosity, impurity-free liquids, and its stainless steel structure ensures high resistance to corrosion. Based on the selected configuration, it can withstand temperatures up to 150°C.
The maximum flow rate of the RIF200C is 800 m³/h, making it an ideal option for a wide range of applications, such as flow control in hydraulic systems, water resource management, and industrial process monitoring.
The design of the RIF200C ensures reliable measurements over time and accuracy of ±0.5%. Its easy installation and maintenance make it an ideal option for a wide range of users, from technicians to industrial companies.
Additionally, the RIF200C has a wide range of connections, including GAS threading, Tri-clamp connection, and UNI EN 1092-1 flange, making it compatible with a wide range of systems.
- Measuring range Up to 800 m³/h
- Process temperature -20...+60°C
- Protection degree IP65
- Signal output 4...20 mA - Frequency/pulse
- Product features
- Principle of measurement : Turbine
- Informations measured : Flow.
- Detection type : Continuous measurement
- Measurable media : Diesel, Water., (the indications on liquids are indicative and vary with the configuration of the product)
- Explosion protection : Safe zone
- Minimum process fluid temperature : -20 °C
- Maximum process fluid temperature : 80 °C
- Version : Standard
- Measurement type : Without contact
- Ambient temperature : -20...+60°C
- Sensor type : Hall-effect sensor
- Flow max (liquid) : 1,2 m³/h
- Flow min (liquid) : 0,2 m³/h
- Installation position : Horizontal
- Flow direction : Unidirectional
- Details of the signal inputs and outputs
- All signal outputs available : RS485, 4...20 mA, Modbus RTU
- Electrical data
- Degree of protection : IP65
- Converter : With display | powered by 24 Vdc, 4...20 mA analogue output and RS485 protocol
- Mechanical data
- Process connection type : Threaded GAS(M)
- Diameter process connection : 3/8" - DN10
- Nominal pressure (PN) : PN25
- Body material : AISI 304 (1,435) - Stainless steel
- Case material : Aluminum
- Bearings materials : WC - Tungsten Carbide
- Axle/shaft materials : WC - Tungsten Carbide
- Performance data
- Accuracy : ±0,5% Of the read value
- Approvals
- Naval approvals : None
- Food / pharmaceutical approvals : None
- Atex approvals : None
- Standards and Certifications : RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
- EMC applied harmonized standards : EN 61326 (For industrial applications)
- CE omologation : Yes
- Low voltage applied harmonized standards : EN 61010-1: 2010
- Rohs applied harmonized standards : EN IEC 63000:2018
- Logistics
- country of origin : Italy
- Customs Code : 90261000
- Gross weight : 3,25 kg
- Net weight : 2,75 kg
