Turbines Inc.

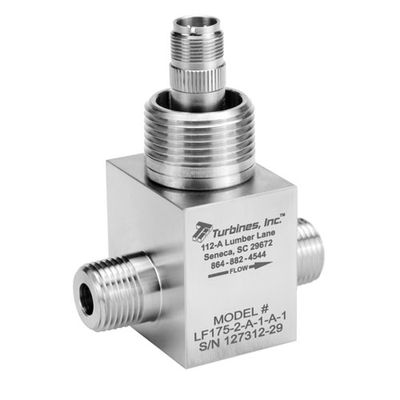

Turbines - Model LF Series -Low Flow Turbine Meter
FromTurbines Inc.
The LF Series flow meter is manufactured specifically for low-flow applications ranging from .007 to 3gpm. The Low Flow Meter can handle working pressures up to 20,000psi (based on end-connection used) and deliver +/- .25% repeatability over the specified flow range. Turbines, Inc. documents the K-factor for each meter by means of a 20-point NIST-traceable factory or independent laboratory calibration.
Most popular related searches
low flow meter
flow meter
liquid flow metering
liquid flow meter
laboratory calibration
turbine flow meter
calibration laboratory
- Line sizes : 1/2"
- Repeatability : +/- 0.25 % over flow range
- Operating Temperature : -70°F to +450°F
- Connection : 37° AN flare, NPT
- (Consult factory for additional process connection options)
- Flow Rates : From 0.007 to 3gpm
- Materials : Meter Body: 316 stainless steel
- Rotor Supports: 316 stainless steel
- Rotor: 17-4PH, Nickel 200, Duplex Stainless Steel (consult factory for other options)
- Rotor Shaft: 316 SS
- Bearings: 440C Stainless Steel raceway and balls, self-lubricating retainer, Teflon, Graphitar. (consult factory for additional bearing material options)
- Certifications : ISO 9001, AS 9100
- Additional Information : Full line of economical Retrofit Kits are available
- Factory refurbishment available
