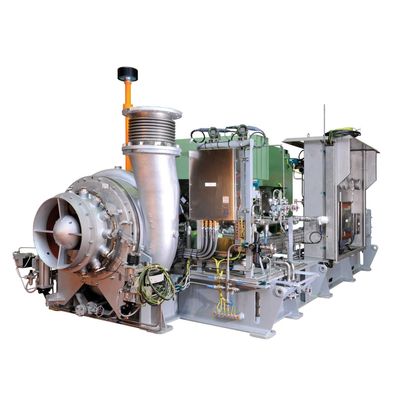

HowdenModel SG Series -Turbo Centrifugal Blower

SHARE

Howden`s SG range of turbo blowers and compressors provide high efficiency over a wide operating range. Our range of turbo blowers encompasses industrial type blowers used in the power, mining and water industries, while our turbo compressors are best suited for API specification type applications in the downstream oil and gas industry. The SG range operates to a constant speed provided by a horizontally split gearbox that requires minimal maintenance and is encased within a compact package design.

Most popular related searches
  • Highly adaptability based on standard industrial or bespoke designs with compact skid design
  • Highly efficient with impeller designed for up to 87% efficiency and turn down to 35% volume flow for optimum efficiency in all duty points
  • Compliant with API Standards 617, 672, 614 and 670
  • Ease of maintenance
  • Minimum downtime
  • Pressure: up to 2 bar (29 psig)
  • Flow rate: up to 120,000 m3/hr (80,000 CFM)
  • Power: up to 5,000 kW (6,700 hp)
  • Tip Speed: up to 450 m/sec (1,476 ft/sec)
