HiPace - Model 60 P with TC 110, DN 63 ...

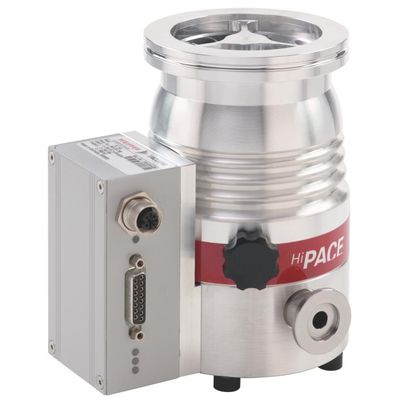

HiPace - Model 60 P with TC 110, DN 63 ISO-K -Turbo Molecular Pump

Small yet powerful turbo molecular pump without Holweck-stage with a pumping speed of up to 64 l/s for N2. Integrated TC 110 drive electronics. Installation in any orientation. Simple and reliable system integration. Insensitive to dust. Extensive accessories expand the range of applications.

Most popular related searches

Bearing: Hybrid
Compression ratio for Ar: 2 · 106
Compression ratio for H2: 2 · 102
Compression ratio for He: 3.5 · 102
Compression ratio for N2: 1 · 106
Connection flange (in): DN 63 ISO-K
Connection flange (out): DN 16 ISO-KF/G ¼"
Cooling method: Convection
Cooling method, optional: Air/Water
Cooling water flow: 75 l/h
Cooling water flow, max.: 75 l/h
Cooling water flow, min.: 75 l/h
Cooling water temperature: 5-25 °C | 41-77 °F | 278-298 K
Current, max.: 4,6 A
Electronic drive unit: with TC 110
Final pressure according to PNEUROP: < 1 · 10-6 hPa | < 7.5 · 10-7 Torr | < 1 · 10-6 mbar
Final pressure without gas ballast: < 1 · 10-6 hPa | < 7.5 · 10-7 Torr | < 1 · 10-6 mbar
Fore-vacuum max. for N2: 4 hPa | 3 Torr | 4 mbar
Gas throughput at final rotation speed for Ar: 0.83 hPa·l/s
Gas throughput at final rotation speed for H2: 55 hPa·l/s
Gas throughput at final rotation speed for He: 55 hPa·l/s
Gas throughput at final rotation speed for N2: 9.2 hPa·l/s
I/O interfaces: RS-485, Remote
Mounting orientation: Arbitrary
Operating voltage: V DC: 24 (± 5 %) V DC
Permissible radial magnetic field max.: 4 mT
Power consumption max.: 110 W
Protection degree: IP54
Pumping speed for Ar: 63 l/s
Pumping speed for H2: 28 l/s
Pumping speed for He: 48 l/s
Pumping speed for N2: 64 l/s
Rotation speed ± 2 %: 90,000 rpm | 90,000 min-1
Rotation speed variable: 50 – 100 %
Run-up time: 1 min
Sound pressure level: ≤48 dB(A)
Venting connection: G 1/8"
Weight: 2.2 kg | 4.85 lb
