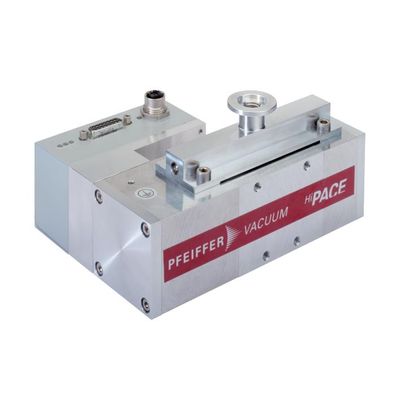

HiPace - Model 10 with TC 110, DN 25 -Turbopump
The world`s smallest series-production turbopump. A powerful, rugged turbopump with a pumping speed of 10 l/s for N2. DN 25 connection. Integrated drive electronics with 24 V supply voltage. Mobile usable. Requires no additional cooling. Electronic connection in direction of fore-vacuum connection.
Most popular related searches
- Bearing : Ball bearing
- Compression ratio for Ar : 2.5 · 107
- Compression ratio for H2 : 3 · 102
- Compression ratio for He : 3 · 103
- Compression ratio for N2 : 3 · 106
- Cooling method, standard : Convection
- Electronic drive unit : with TC 110
- Flange (in) : DN 25
- Flange (out) : DN 16 ISO-KF / G 1/8"
- Fore-vacuum max. for N2 : 25 hPa | 18.75 Torr | 25 mbar
- Gas throughput at full rotational speed for Ar : 0.37 hPa l/s | 0.28 Torr l/s | 0.37 mbar l/s
- Gas throughput at full rotational speed for H2 : 2.78 hPa l/s | 2.08 Torr l/s | 2.78 mbar l/s
- Gas throughput at full rotational speed for He : 0.48 hPa l/s | 0.36 Torr l/s | 0.48 mbar l/s
- Gas throughput at full rotational speed for N2 : 0.37 hPa l/s | 0.28 Torr l/s | 0.37 mbar l/s
- Interfaces : RS-485, Remote
- Mounting orientation : in any orientation
- Operating voltage : 24 (± 5 %) V DC
- Particulate matter : yes
- Permissible magnetic field max. : 3 mT
- Protection category : IP 54
- Pumping speed for Ar : 11.5 l/s
- Pumping speed for H2 : 3.7 l/s
- Pumping speed for He : 6 l/s
- Pumping speed for N2 : 10 l/s
- Rotation speed ± 2 % : 90,000 min-1
- Rotation speed variable : 50-100 %
- Run-up time : 0.9 min
- Sound pressure level : < 50 dB (A)
- Ultimate pressure according to PNEUROP : < 5 · 10-5 hPa | < 3.75 · 10-5 Torr | < 5 · 10-5 mbar
- Weight : 1.8 kg | 3.97 lb
