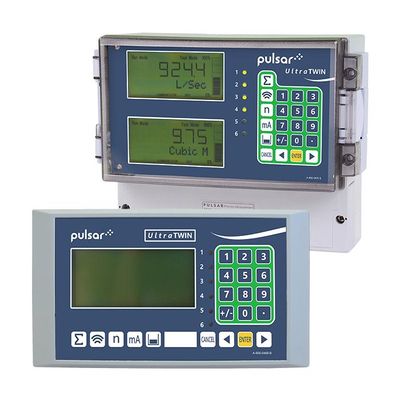

Pulsar - Model UltraTWIN -Twin-Channel Differential Level and Volume Monitoring
UltraTWIN offers twin-channel differential level and volume monitoring. Each channel is user-configurable to operate independently either as an open channel flow meter, a pump control system, or as a level and volume monitoring unit for liquids and solids. The wall-mount version of the UltraTWIN controller offers two screens, each programmed independently to be able to monitor differential level or for dual tank monitoring. Combine the UltraTWIN with the dB Ultrasonic Transducer Series to get an accurate and reliable level measurement of liquids or solids.
Most popular related searches
open channel flow meter
level monitoring
channel flow meter
pump control system
open channel flow
flow meter
ultrasonic transducer
pump controller
tank monitoring
open channel meter
- Dual-channel measurement
- Wall or fascia options
- 2 isolated outputs
- Data logging option
- Easy prompt led set up
- 4 digital inputs assignable to other alarm functions
- Spec: Description:
- Weight: 1 kg (2.2 lbs)
- Cable Entry Details: 10 cable entries, 1 x M16, 5 x M20 underside, 4 x PG11 at rear
- IP Rating: IP64 & 65
- Operating Temperature (Electronics): -20 °C to +50 °C (-4 °F to +122 °F)
- Analog Output: 2 x Isolated output 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable), 0.1% resolution
- Digital Outputs : Full duplex RS232 via RJ11 port
- Digital Inputs: Wall = 4, Fascia = 7, normally open or normally closed, 24 V DC supply
- Power Supply: 115 V AC +5%/-10% 50/60 Hz, 230 V AC +5%/-10%, 18-30 V DC
- Volt Free Contacts: 6 form C (SPDT) 5 A, 240 V AC
- Display: 6-digits plus 12 character text, bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators
- Option: Description:
- Mounting: Standard Wall Mount
- Data logging: SD Data Card logger
- Communications: RS485 Modbus & Data logging option
- Profibus & Data logging option V1
- IP64 & 65
- CE Approval
- UL Approval
