Products and Equipment from Pulsar Measurement

FlowCERT - Open Channel Flow Meter

The FlowCERT open channel flow meter provides comprehensive flow monitoring with data logging and control functions for a complete range of flumes and weirs. It is compatible with a range of sensors in order to create a flow metering system to suit your ...

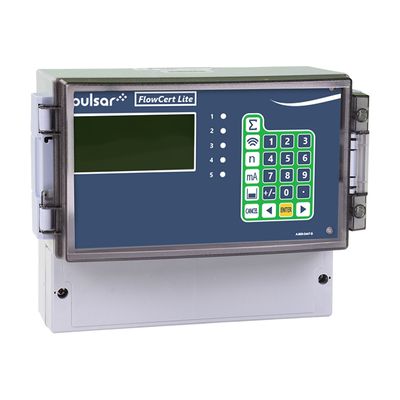

FlowCERT Lite - Mcerts Open Channel Flow Meter

FlowCERT Lite offers 2 mcert open channel flow meter systems both with Class 1 ...

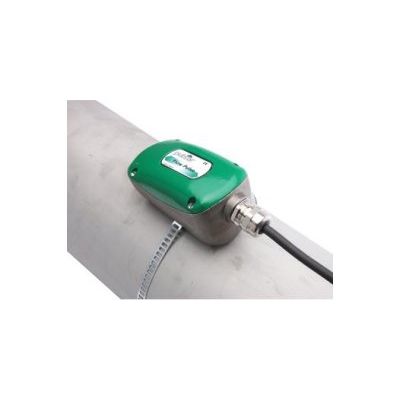

Flow Pulse - Non-invasive Clamp-on Flow Monitor for Pipes

Flow Pulse® is a unique, non-invasive flow monitor that clamps to the outside of a pipe and is simply secured with a screwdriver. Flow Pulse offers you exceptional repeatability at a fraction of the cost of an equivalent magflow meter. It can reliably monitor flow across a variety of pipe materials including rigid plastic, stainless steel, cast iron and even corrugated ...

Pulsar - Model IMP+ - Ultrasonic Level Measurement without Compromise

IMP+ can be used wherever you need reliable non-contacting ultrasonic level measurement and Pulsar's DATEM echo processing means IMP+ is perfect for solids or liquids and anywhere you need a display telling you the level, or an analogue output to interface with your site control system or drive a display. There is an IMP+ to suit your application, 3m, 6m and 10m range versions are available and each ...

Pulsar - Model Blackbox 136 - Non-contact Level Monitoring System

Non-contacting intelligent monitoring of level or overflow events. Blackbox 136 CSO is a sophisticated ultrasonic system specifically designed for use with batteries to provide non-contacting monitoring of level or overflow events, with exceptionally low power consumption to maximise battery life in remote locations. Blackbox 136 CSO also features on-board data ...

Pulsar MicroFlow - Non-contacting Microwave Liquid Velocity Sensor

MicroFlow delivers accurate, repeatable velocity measurement of liquid flow, either as a stand-alone device or as part of a complete measurement system. MicroFlow builds on Pulsar's award-winning pipe flow technology and world-leading open channel flow measurement ...

Greyline - Model Stingray - Portable Level Velocity Logger

Stingray 2.0 is a compact, battery-powered logger with an ultrasonic sensor. It data logs level, velocity and water temperature readings for flow monitoring through open channels, partially full sewer pipes and surcharged pipes. Use it for flow surveys I&I studies, stormwater, irrigation water and sewage. Singray 2.0 uses a submerged ultrasonic sensor to continuously measure both velocity and level in the channel. The sensor is a completely sealed ...

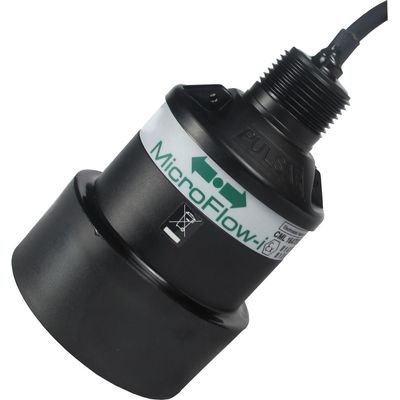

Pulsar - Model MicroFlow-i - Velocity Measurement

The MicroFlow-i is a non-contacting velocity measurement solution. Its extremely low power consumption makes it an ideal velocity measurement solution to remote sewer network access points that are difficult to reach and often have no mains power supply. Combine the MicroFlow-i with a dBi Intelligent Transducer for a complete, low power, non-contacting velocity area measurement solution. These lightweight and compact, open channel flow ...

Pulsar - Model dB Transducer Series - Non-Contacting Ultrasonic Sensors for Level, Volume and Flow

The dB Transducer series from Pulsar Measurement is a range of level sensors for wastewater and industrial environments. Ranging from 3 m (9.8 f) to 50 m (164 ft) all of our ultrasonic level sensors provide a reliable level, volume, open channel flow, pump control, and differential level measurement for both liquid and solid applications. The dB ultrasonic level transducer range benefits from highly accurate and repeatable ultrasonic technology. A ...

Pulsar - Model dBi HART Series - Ultrasonic Intelligent Transducers

Wastewater level monitoring made simple with the intelligent dBi HART level sensors from Pulsar Measurement. The dBi HART transducers are a range of self-contained, intelligent, non-contacting level sensors. Making use of HART protocols makes integration with existing site systems quick, simple, and easy. These non-contacting, ultrasonic level transducers can be used as stand-alone devices or as complete systems, using HART protocols for data ...

Pulsar - Model dBi Profibus Series - Ultrasonic Intelligent Transducers

The dBi Profibus series transducers are a range of non-contacting, ultrasonic level sensors that make use of the widely used Profibus Protocols. The self-contained level sensors are available in a variety of different measurement ranges ranging from 125 mm to 15 m (4.9 in to 49.2 ft) to suit a wide range of applications from wastewater level measurement to industrial level ...

Pulsar - Model dBMACH3 and dB3 - Non-contacting Open Channel Flow Sensors with Double Sun Shields

The dBMACH3 and dB3 with double sun shields are specially designed for non-invasive flow measurement. A lot of flow metering devices require mounting in the bottom of a pipe or channel, which requires a shut down of the operation for installation to take place. The dBMACH3 and dB3 with double sun shields are the ideal alternative open channel flow sensors. The dMACH3 is the first ultrasonic sensor to achieve a zero-effective blanking distance. The dB3 ...

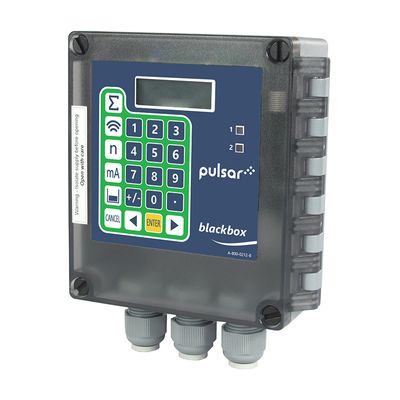

BlackBox - Model 130 - Level Control System

Level control in big silos or tanks can sometimes be difficult to achieve and involve a lot of health and safety risks. Getting accurate and reliable level control has never been so simple. The Blackbox 130 controller from Pulsar Measurement is a compact, low-cost intelligent level control unit that offers non-contacting level measurement. Use it in any application where you need a quick, simple, and easy indication of ...

Pulsar - Model mmWAVE dBR Radar Series - Non-contacting Radar Level Sensors

The dBR radar series of transducers from Pulsar Measurement are a range of Radar level sensors that are ideal for difficult applications such as high temperatures, applications subject to foam or atmospheric changes, or applications with harsh chemicals that give off vapors. Radar level sensors from Pulsar Measurement are complimentary to the Ultrasonic range of sensors and gives end users a complete choice of technology based on the needs of their ...

Pulsar - Model IMP - Ultrasonic, Non-Contacting Level Measurement

The IMP range of non-contacting level sensors from Pulsar Measurement are designed to be used wherever you need an accurate and reliable level indication. The unique digital echo process techniques featured in the IMP range of level sensors mean the units are perfect for slurries, liquids, or anywhere where you need a display giving you a level indication or analog output to interface with your existing site control system or to drive a ...

Pulsar - Model IMP I.S. - Self-Contained, Ultrasonic and Level Measurement

The IMP range of level sensors feature a combined transducer and controller in one self-contained unit. All IMP units from Pulsar Measurement are non-contacting, accurate, and reliable level measurement units. The IMP level sensors do not come into contact with the process, therefore there is no need to shut down or interrupt operations. Featuring specially designed digital echo processing technology, the IMP level measurement units provide simple, ...

Pulsar - Model UltraTWIN - Twin-Channel Differential Level and Volume Monitoring

UltraTWIN offers twin-channel differential level and volume monitoring. Each channel is user-configurable to operate independently either as an open channel flow meter, a pump control system, or as a level and volume monitoring unit for liquids and solids. The wall-mount version of the UltraTWIN controller offers two screens, each programmed independently to be able to monitor differential level or for dual tank monitoring. Combine the UltraTWIN with the ...

Pulsar - Model dBi Modbus - Intelligent Transducer

The dBi Modbus (dBi-M) series of transducers are the ultimate, low-power, ultrasonic level sensors that benefit from Modbus communication. The series features Pulsar Measurement’s world-leading DATEM echo processing power for accurate and reliable measurement in the most challenging applications, with a suitable measurement range of 125 mm to 15 m (4.9 in to 49.2 ...

Pulsar - Model IMP Lite - Non-Contacting Ultrasonic Level Measurement

The IMP Lite is part of the IMP non-contacting level sensor range from Pulsar Measurement. It is a lower-cost alternative to the IMP level sensor and is designed to be used wherever you need a reliable, non-contacting indication of level measurement. The IMP Lite is compact and low-profile, when used on battery power for intermittent applications, its high-speed boot up of circa 3 second maximizes battery ...

Pulsar - Model Ultra 4 - Advanced Ultrasonic Level, Flow, Volume and Pump Control

The Ultra 4 is a fully functional advanced controller for level, flow, volume, and pump control. MCERTS Class 1 certified, it offers open channel flow measurement for stormwater overflows and event duration monitoring. The multifunctional display offers the ability to be able to view trend graphs on-screen and get a glance at how levels have changed over time. When combined with the dB3 with double sun shields, the Ultra 4 achieves MCERTS Class 1 ...

PulsarGuard - Model 2001 - Fixed & Portable Sand Monitoring Sensor

The PulsarGuard 2001 sand sensor has been specifically designed for the Oil and Gas industry, using acoustic technology to detect sand / solids impact rate. The non-contacting sand-in-oil sensor is connected to the outside of the pipeline with a stainless steel band, meaning there is no need to break into the pipe or interrupt the operation. Using acoustic technology, it detects changes in the signature of flow within the pipe and converts it into a sand ...

iSensys SandAlert - Fixed & Portable Sand Monitoring System

Specifically developed for sand monitoring in the oil and gas industry, the iSensys SandAlert monitor is a sand and particle monitor that is ideal wherever you need to keep wells producing efficiently. Sand production for oil and gas operators is an increasing problem and can cause catastrophic damage to well and rig equipment. The SandAlert provides robust, dependable sand monitoring data, so plant operators can be confident they are operating at the ...

iSensys SandAlert - Portable Sand Monitoring System

Sand monitoring in the oil and gas industry is absolutely paramount to keep wells producing efficiently and at capacity. Excessive solid production in the oil stream can cause catastrophic damage to well and rig equipment. The iSensys SandAlert Portable Sand Monitor has been designed to give oil and gas producers robust and dependable sand monitoring solutions. The Portable Sand Monitor is fitted into a rugged pelican case and is a complete kit including ...

Quantum - Model 2 - Pump Controller

Quantum 2 by Pulsar Measurement is designed to be an intelligent and sophisticated pump controller. Featuring unique intelligent pumping, with 'time to spill' alarms and DATEM echo discrimination to provide solid performance and sophisticated level measurement. The unit has the ability to reset pumps automatically and can be used in those high-risk areas to enhance site management. Featuring a large onboard data logging facility, it enables the entire ...

Quantum - Model 3 - Superior Pumping Station Control

The Quantum 3 is a full-featured pump controller, designed to offer intelligent pumping for small pump stations, without costly PLC programming. Featuring a unique 'time to spill' alarm, it offers utilities and plant operators adequate time to react to prevent pump stations from spilling into local water sources. The unit offers the ability to add up to 4 FlowPulse non-invasive pipe flow sensors, so all flow-rate-based alarms and control are based on ...

Pulsar - Ultimate Pump Controller System

The Ultimate controller from Pulsar Measurement has been designed to be an all-in-one pump controller, for small pump station control without the costly need for a PLC or logic programming. This intelligent pump controller is a system that combines ultrasonic level, flow measurement, RTU, and advanced pump control features in one economic, easily programmed, modular unit. The Ultimate controller includes a dedicated web server remote control and ...

Pulsar - Model Ultra 5 - Non-contacting Ultrasonic Level Control and Flow Measurement

The Ultra 5 offers pump control, flow measurement, level control, volume calculations, and differential level measurement all in one compact unit. The control unit provides five assignable relays with extra-alarm options such as pump efficiency and extra pump control functions such as pump run on, pump exercising, storm and aeration control, and differential level control; the addition of further relays in open channel flow ...

Pulsar - Model Zenith 140 - Intelligent Pumping Station Controller

The Zenith pump controller by Pulsar Measurement is a high specification full-featured pump station management system. The combination of ultrasonic measurement and control and monitoring of pumps and other control functions makes it possible for utility companies across the globe to reduce the use of expensive PLCs and provides savings when it comes to programming costly logic and pump control ...

Pulsar - Model Sludge Finder 2 - Sludge Blanket Level Control

The Sludge Finder 2 provides reliable and continuous sludge blanket level measurement. The two-part system has been purposely designed for sludge blanket level measurement, operating ultrasonically through a liquid. The Sludge Finder 2 uses proven echo processing algorithms to identify the sludge interface level using state of the art technology only found in this ...

Pulsar - Model PulsarGuard Series - Non-invasive Solids Flow Detection Monitor

The PulsarGuard acoustic sensor range offers reliable solids flow detection, it detects structure-borne acoustic signals caused by the movement of material. This movement then causes impacts and frictional contact within a containment (e.g. the inside of a pipe). The sensor detects and reacts instantly to changes in solids flow and warns of blockages and foreign object detection, high flow, low flow, or no-flow ...

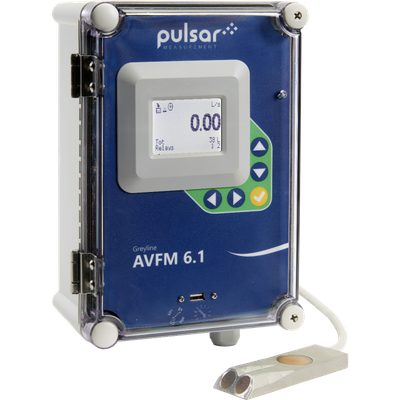

Greyline - Model AVFM 6.1 - Area Velocity Flow Meter

The area-velocity flow measurement method is the most common method of all flow measurements. The Greyline Area-Velocity Flow Meter uses a submerged ultrasonic sensor measuring both level and velocity of flowing liquid to calculate flow measurement in an open channel or pipe. The sensors are mounted either inside a pipe or at the bottom of a channel. Just enter the pipe diameter or channel dimensions into the accompanying control unit, and the ...

Greyline - Model DFM 6.1 - Doppler Flow Meter

Gaining accurate flow measurement inside a pipe can sometimes be tricky. The Greyline DFM 6.1 Doppler Flow Meter offers clamp-on pipe flow measurement from outside the pipe. Its Doppler technology makes it perfect for 'difficult' liquids, or liquids with suspended solids such as wastewater, slurries, sludge, chemicals, viscous liquids, and abrasives. The non-invasive Doppler flow meter fits any pipe 12.5 mm (0.5 in) inside diameter or larger and clamps on ...

Greyline - Model DLT 2.0 - Differential Level Transmitter

The Greyline DLT 2.0 Differential Level Transmitter is a simple solution for differential level measurement including applications found in wastewater treatment plants, pump stations, and combined sewer systems. The Differential Level Transmitter includes two differential level sensors. Position each sensor at your desired location, above a channel, up and downstream from a bar screen for example, and the DLT 2.0 can display and transmit differential ...

Greyline - Model LIT25 - Level Indicating Transmitter

The Greyline LIT25 is a level indication sensor that displays, controls, and transmits level. The non-contacting level sensor mounts at the top of a tank and the compact, watertight display enclosure is mounted at a convenient location nearby. Operators can calibrate the LIT25 with its 2-button keypad, without climbing to the top of the tank, enabling organizations to gain better stock and inventory control and tank level measurement that complies with ...

MantaRay - Portable Area-Velocity Flow Meter

The Greyline MantaRay is a portable area-velocity meter and measures flow in open channels, partially filled, and surcharged pipes using a submerged ultrasonic sensor. The unit is designed for flow surveys in open channels, partially full sewer pipes, and surcharged pipes - making the portable open channel flow meter suitable for sewer monitoring, industrial flow monitoring, irrigation flow, and natural streams. The Greyline MantaRay displays and logs ...

Greyline - Model OCF 6.1 - Open Channel Flow Meter

The Greyline OCF 6.1 is an open channel flow meter that doubles as a tank level meter, making it a perfect solution for non-contacting flow and level measurement. The non-contacting open channel flow meter is able to continuously monitor, display, totalize, and data log flow through any flume or weir. The ultrasonic sensor supplied with the OCF 6.1 mounts just 203.2 mm (8 in) above the flowing water giving +/- 0.25% accuracy. The non-contacting open ...

Greyline - Model PDFM 5.1 - Portable Doppler Flow Meter

It's ideal for flow troubleshooting, balancing and checking performance of permanent flow meters. The new PDFM 5.1 is fast and easy to operate – you can mount the sensor on the outside of a pipe in less than a minute. Use the built-in keypad and calibration menu to set up the flowmeter for your application. The PDFM 5 works on any liquid containing bubbles or solids and is recommended for 'difficult liquids' like wastewater, slurries, sludge, ...

Greyline - Model PTFM 1.0 - Portable Transit Time Flow Meter

Recommended for fluids like water, glycol, oils and chemicals. Use it for calibrations, troubleshooting, flow surveys and as a temporary transmitter to replace inline flowmeters. The PTFM 1.0 ultrasonic transducers strap-on the outside of pipes from ½' to 48' (12 to 1200 mm) diameter. The ultrasonic signal works through common pipe materials including carbon steel, stainless steel, ductile iron, cast iron, PVC, PVDF, fiberglass, copper, brass, ...

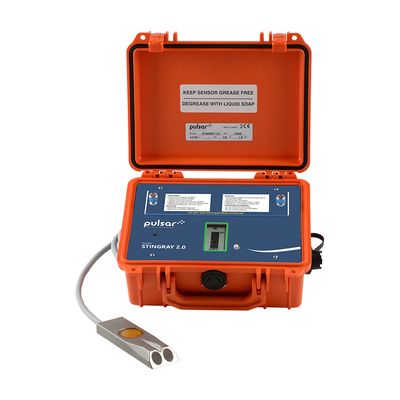

Greyline - Model Stingray 2.0 - Portable Level-Velocity Logger

Stingray 2.0 is a compact, battery-powered logger with an ultrasonic sensor. It data logs level, velocity and water temperature readings for flow monitoring through open channels, partially full sewer pipes and surcharged pipes. Use it for flow surveys, I&I studies, stormwater, irrigation water and ...

Greyline - Model TTFM 6.1 - Transit-Time Flowmeter

Accurately measure the flow rate of clean, non-aerated liquids like water, chemicals, and oils in full pipes. Ultrasonic transducers mount on the outside of a pipe without shutting down flow. Flow rate is displayed on the large, backlit display along with totalizer and signal strength. Use the built-in control relays for flow alarms or flow proportionate pulse. Connect the isolated 4-20mA output to PLC's or ...
