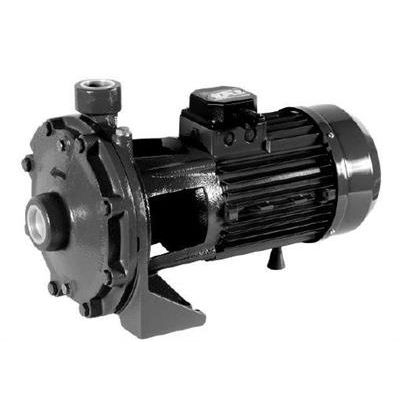

Soggia - Model SCB -Twin Impeller Centrifugal Pumps
FromSoggia Srl
Twin impeller centrifugal waterpump. SCB performs with high water capacity related to good pressure and medium/low power. Suited for use in industrial, civil and agricultural applications, heating systems and water supplier . It is recommended that these pumps are used to carry only chemically pure liquids, with temperatures not higher than 80°C.
Most popular related searches
surface electric pump
impeller centrifugal pump
drain tank
pool pump
electric pump
impeller pump
drinking water
centrifugal pumping
centrifuge
centrifugal pump
- Max capacity: 180 l/min (10,8 ma/h)
- Max head: 92,5 meters
- Rotation speed 2850 r.p.m.
- Continuos service
- Maximum suction height: 7 meters
- Potable water
- Home pressure increasing
- Small/medium garden irrigation
- Draining tanks and pools
- Pumping clean water even on industrial machinery
- Monoblock horizontal axis pump
- Pump body and Motor Bracket in cast iron G20
- Stainless steel shaft
- Mech. Seal in ceram./graph.
- Impeller in brass
- Electric, closed-type with external cooling fan,
- Protection class IP 44
- Class of insulation F
- Single-phase at 220-230 V - 50 Hz; fitted with a thermal protection to avoid damages to the motor.
- Three-phase a 230/400 V - 50Hz; protection must be provided by user.
