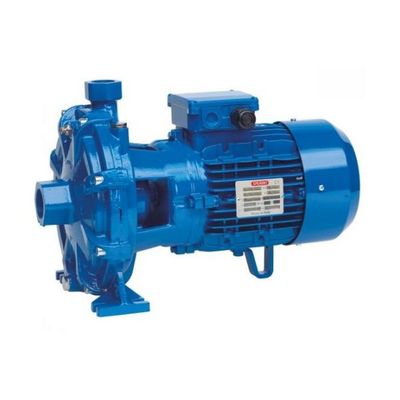

Speroni - Model 2 CM 25 -Twin Impeller Centrifugal Water Pump
FromSperoni Spa
Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single- impeller model. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.
Most popular related searches
centrifugal water pump
water pump
impeller centrifugal pump
centrifugal pumping
centrifugal pump
centrifugal impeller
impeller pump
centrifuge
water distribution
water pump lifting
- LIMITS OF USE
- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
- Temperature max. liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty
- ENGINE
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz P2 ≤ 7,5 kW
- Three-phase 400/690V-50Hz P2 > 7,5 kW
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- MATERIALS
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
