WRS - Model SH50 -Twin-Shaft Shredder
FromWRS Italia Srl
Grinding bodyOn steel complete with 2 hexagonal shafts counter-rotating at different speed. Connecting frame in welded C-section steel bar. Right-angle or in-line planetary gearbox. Colours gray RAL 7024 and RAL 7035.
Most popular related searches
hydraulic control system
double shaft shredder
hydraulic shredder
safety system
shredder
electrical safety
grind shredder
shredding system
- Safety self-controlling module for safety devices supervision
- Electric motor 37 KW – 400V/50Hz (protection degree IP55 and insulation class F)
- Electric control board (protection degree IP55)
- Multifunction PLC
- Automatic reversal device in case of overloading
- Programming of number of inversions
- Loading hopper in steel plate thickness 5mm
- Heat exchanger: 0,55 KW
- Oil tank capacity: 160 L
- Standard oil hoses length: 2500 mm
- Mass: 750 kg
- Industry 4.0 Smartbox One module

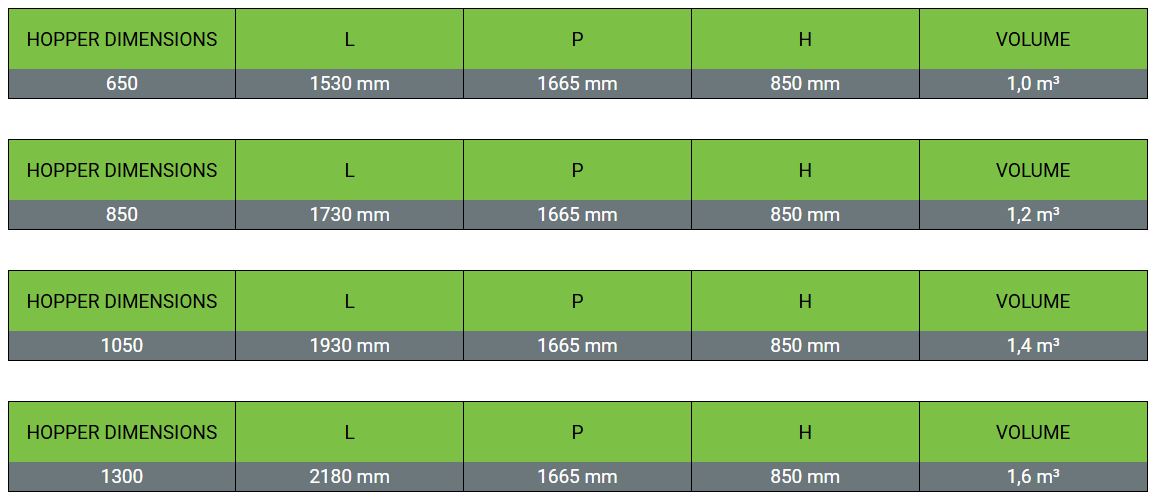

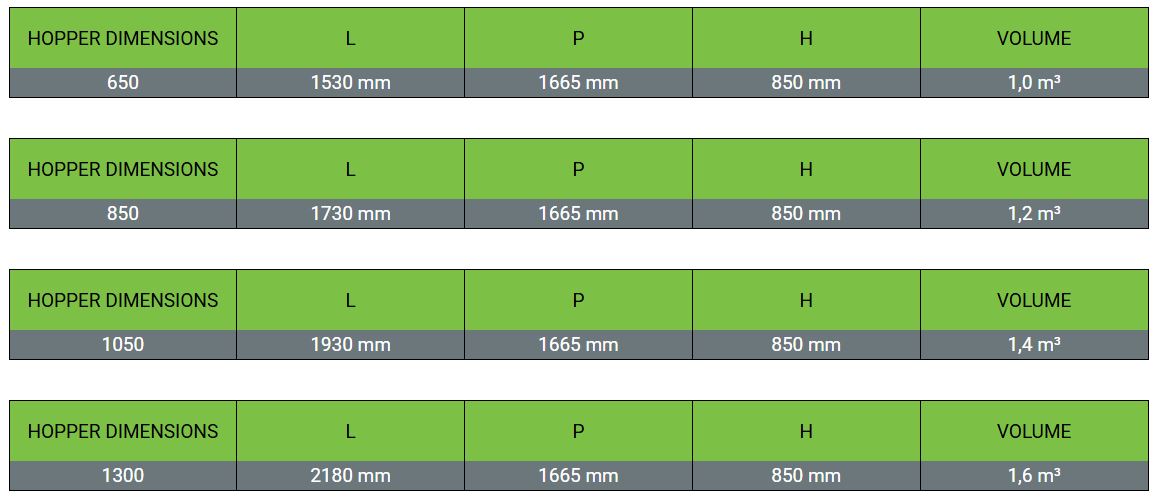

- Customizable loading hopper
- Hydraulic ram-feeder
- Customizable support
- Easy removal of scrapers
- Customizable colours
- Blades range with different profiles and kind of steel according to the material to be processed
- Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 90mm
- Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations
- Double mechanical seals with vent chamber
- Scraper hooked to the sides through sliding guides
- Extended warranty on request
