Oldcastle Infrastructure, Inc.
Two-Phase Sectionalizing Cabinets

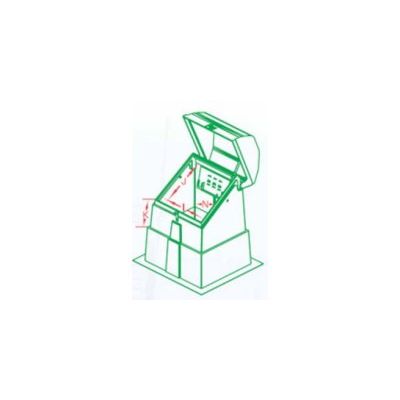

Highline Products manufactures fiberglass two-phase sectionalizing cabinets designed to provide complete access from the top and sides when the lid is open. Offering flexible installation options for electrical utility needs, these primary cabinets are designed to be buried or mounted on a concrete pad.
Most popular related searches
- Direct Burial or Pad-mounted on concrete pad.
- Complete access from top and sides when lid is open.
- Rugged fiberglass construction.
- Smooth aesthetically pleasing exterior finish.
- Weather and UV enhancing outer coating applied.
- Standard color Munsell Green, other colors may be available upon request.
- External hardware is stainless steel or brass.
- No hinges, cover rolls back on (2) pivot points.
- External step design for greater side wall support.
- Junction mounting boards are easily removable for installation of load-break junctions.
- Will accommodate 15kV and 25kV, 200Amp and 600Amp junctions. Factory installed junctions can be provided.
- Wind lock provided for added safety.
- Below line parking stands are standard. Inline parking stands available.
