Cleatech - Two-Port Multi-Config Closed-Loop Glovebox Static-Dissipative Acrylic

FromCleatech LLC

SHARE

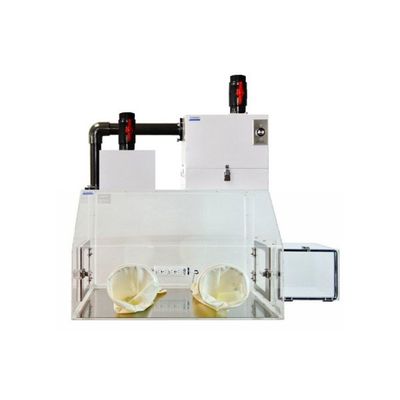

2400 series closed-loop filtration glove boxes offer a combination of the 2100 series isolation glove box and the HEPA filtration of the 2300 series glove boxes. The 2400 series gloveboxes provide a low humidity and a clean, particulate controlled environment for critical processing operations in nanotechnology, semiconductor and pharmaceutical industries.

Most popular related searches

closed loop glovebox

isolation glovebox

pressure relief valve

oxygen monitoring

controlled environment

glovebox system

¼’’ Thick Clear Static-Dissipative Acrylic.
Static dissipative coating increases the chemical resistance of acrylic when compared to non-coated acrylic.
Eliminates static charges and keeps the dry box clean since it does not attract particles from the air. Surface resistivity of 106 – 108 ohms per square. Provides for ESD control without the need for ionization.
Excellent optical properties with no color tint.
Can be converted from an open exhaust glovebox to a closed-loop glovebox and vice versa.
Overall Dimensions (Main Chamber): 35 ” W x 24” D x 25” H; Overall Dimensions (Airlock): 11.75” W x 10.5” D x 10.5” H
Two access doors open outwards (or inwards upon request) for negative pressure configuration. If an airlock is included, airlock doors open inwards. Doors include a stainless steel door frame, hinge, one-piece non-adhesive sealing.
Side door opening 10” x 10”
Blower module, adjustable speed, backward curved impeller 480-CFM, permanently lubricated, automatic reset thermal overload protection, 120VAC, 60Hz, UL Listed; CSA Certified; Enclosed in a polypropylene housing.
Primary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns. Filter media is ultra-fine glass fiber and is 3″ thick. The maximum temperature is 180° and the filter meets UL Class 2 flame retardant requirements.
Removable (fully gasketed) back wall for operations involving large equipment. (Fixed by screw)

Shipping Weight; 170 lbs
Shipping Dimensions; 42 × 30 × 48 in
Part No.; 2400-2-M
Configuration; Filtration Closed Loop
No. of Glove Ports; 2
Chamber Volume; Medium ~ 10 cu.ft.
Main Chamber Dimension; 35x24x25
Material; Static-Dissipative Acrylic

Secondary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns.
ULPA filter is 99.999% efficient at trapping particles as small as 0.12 microns. The 3’’ thick filter removes contaminants from the exhaust gas, making it safe for indoor release.
Gas-in port & pressure relief valve is required when using cold dry air (CDA), nitrogen or an inert gas to reduce humidity.
Hospital-grade power strip with four outlets that provide 110 VAC. Designed to be utilized within the glovebox workspace.
Automatic Nitro Purge Control Unit Type S*
Automatic Nitro Purge Control Unit Type D**
Oxygen Monitor (oxygen analyzer) with a single range of 0-100% (-/+1%)
Stainless steel work surface or spill tray helps to limit surface damage. Recommended for Static Dissipative PVC gloveboxes to protect the anti-static coating.
Epoxy powder coated steel stand with caster (including two locking). Clean room compatible, the stands are available in 30`` and 35`` height with an optional upgrade to leveling mounts.
