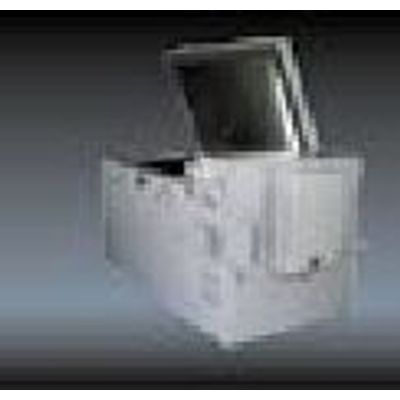

Webber - Two Zone Vertical Thermal Shock Chamber
Interiors of heavy gauge brushed finish Type 304 stainless steel. Heliarc welded interior seams to form a rugged, vapor-tight unit. Insulated with non-settling, non-hygroscopic high “R” value fiberglass. Exteriors are fabricated of structural steel and heavy gauge corrosion resistant sheet steel. Dual silicone rubber gaskets to seal doors to the chamber. Heavy-duty door hinges and a specially designed, adjustable door latch. Tough, industrial quality, textured enamel paint finish. Access panels for easy serviceability. Stainless steel drain with a check valve in cold compartment. Pressure equalization system in both compartments. Standard chamber finish is medium gray. All chambers allow handling with a forklift.
Transfer System
The transfer basket will be operated by an air cylinder and cable transfer system with related positioning and transfer controls. Alarms are provided to indicate that the basket is in transfer and also provide indication of an incomplete transfer. Transfers occur in 30 seconds or less between the hot and cold Compartments.
Hot Compartment
Can be programmed within the range of +140*F to + 400*F.
Cold Compartment
Can be programmed within the range of ambient to – 100*F
Guaranteed Soak
The chamber programmer/controller is equipped with a feature allowing user to utilize a “Guaranteed Soak” the respective compartments have achieved the pre-set temperature before starting a dwell segment at that temperature.
