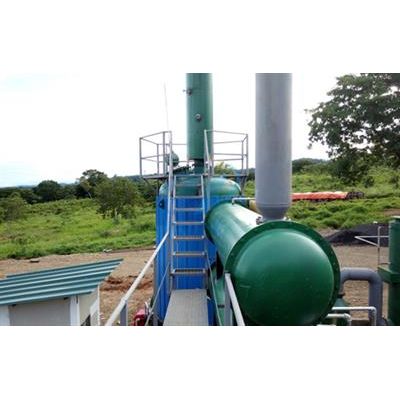

DY - Model DY 6T 8T 10T -Tyre to diesel recycling plant
With waste tires/tyres and plastic scrap zoom, the protection of our environment and the shortage of resources are increasingly both big problem for our land. Fortunately, science and technology are also growing at a rapid pace, the pyrolysis and distillation technology can help solve this situation to a certain extent. For example, tyre to diesel recycling technology can not only relieve the tyre waste pollution but also create oil resources for society. Email: oilmachine@doinggroup.com http://www.wastetireoil.com http://www.china-doing.com

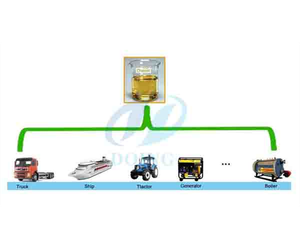

The tyre to diesel recycling plant can purify waste tyre oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.

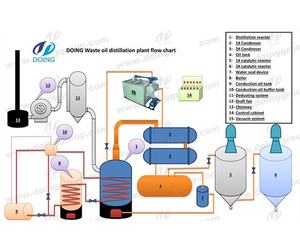

Tyre to diesel recycling plant working process
1. Pump raw material into distillation reactor by oil pump. Then close the feeding inlet to totally sealed. (Continuous plant adopts automatic feeding device);
2. Use coal/wood/natural gas/fuel oil/electricity to heat the reactor, and the liquid oil will slowly become oil gas, which will be liquefied into fuel oil by the cooling pipe and condensers and then go into oil tank. For getting higher quality diesel, you are required to control the temperature over 150 Celsius degrees. When the temperature decreases to below 150 Celsius degrees, the gasoline will be cooled out;
3. Some gases like Methane, Ethane, Propane, Butane cannot be liquefied will be recycled into the furnace for heating the reactor;
4. It will produce some smoke when fuel materials are burnt. The smoke will be processed by dedusting system completely;
5. The exhaust gas will go into the chimney sucked by draft fan, before emission the exhaust gas will become steam, no pollution.
