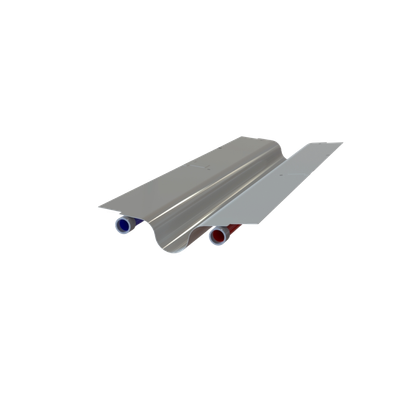

UHRIG - Model Type A -Therm-Liner Systems
Type A is installed in classic gravity pipelines. The modular heat exchanger system can be installed in both new or old pipes and dismantled at the end of its service life.
Most popular related searches
liner system
wastewater heat
metering system
manhole
temperature regulator
wastewater energy
water conditioning
Scope of application
- Gravity pipeline and treatment plant discharge point
- For size DN 400 / 16’’ upwards, ideally DN 800 / 32’’ or larger
- For remediated and unremediated pipelines
Installation
- Through the existing manhole infrastructure
- Under dry conditions with water retention
- Method of attachment depends on pipe material
Particularities
- Dry weather channel
- Modular extension possible
- Large transmission area per meter
USP
- Internal solution; installation inside gravity pipeline
- Minimally invasive installation through existing infrastructure
- For remediated and unremediated pipelines
UHRIG Energy specializes in the ready-to-use construction of heat exchanger systems that connect to the top edge of the pipeline. In order to utilize the thermal energy harvested, it is necessary to have an interface to the heat pump and the heat pump itself – i.e., three components all together.
- Heat exchanger: delivers the thermal energy from the pipeline
- Interface: flow and return pipes, connection to heat pump
- Heat pump: for regulating the temperature inside the building
For some projects, UHRIG also offers to plan and build the interface. Just talk to us if you’re interested in an all-in-one solution.
