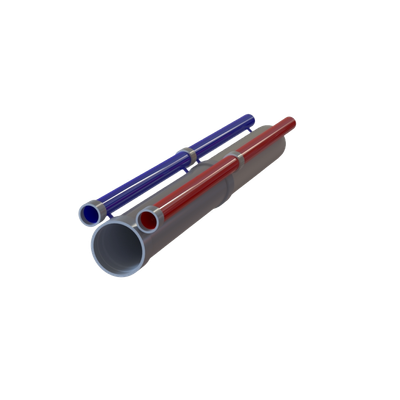

UHRIG - Model Type C -Therm-Liner Systems
UHRIG heat exchangers are also used in pressurised pipes, as type C. Pressure pipes cannot be walked on, so civil engineering work is required for installation. In most cases, a section of the pressure pipe is replaced by a new pipe section with an integrated heat exchanger.
Most popular related searches
liner system
pressure pipe
wastewater heat
pressure pipeline
pipe remediation
underground water
temperature regulator
wastewater energy
pipeline integrity
water engineering
Scope of application
- Gravity pipeline and pressurized wastewater pipeline
- Can be used as a bypass or pipe replacement
- For remediated and unremediated pipelines
Installation
- With underground engineering
- With water retention during installation
- Can be installed according to the specific on-site requirements
Particularities
- Individual modules can be replaced
- Modular extension possible
- Large transmission area per meter
USP
- Made from stainless steel
- Installed in a protective cladding tube
- For remediated and unremediated pipelines
UHRIG Energy specializes in the ready-to-use construction of heat exchanger systems that connect to the top edge of the pipeline. In order to utilize the thermal energy harvested, it is also necessary to have an interface to the heat pump and the heat pump itself – i.e., three components all together.
- Heat exchanger: delivers the thermal energy from the pipeline
- Interface: flow and return pipes, connection to heat pump
- Heat pump: for regulating the temperature inside the building
For some projects, UHRIG also offers to plan and build the interface. Just talk to us if you’re interested in an all-in-one solution.
