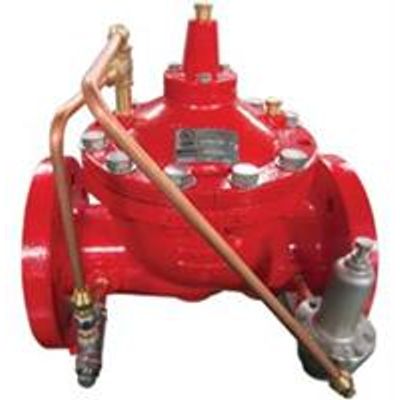

Singer Valve - Model 106-PR-10159 -UL Pressure Reducing Valve
The 106-PR-10159, which is UL labelled and listed, is ideal for automatically reducing a higher inlet pressure to a steady lower discharge pressure, regardless of fluctuations in flow or inlet pressure.The valves are based on the 106-PG control valves and are available in a complete range of sizes from 2 in / 50 mm to 8 in / 200 mm. In typical pressure reducing applications, the globe style 106-PR-10159 is often the preferred valve style.
- UL approved for fire extinguishing systems
- Reliable diaphragm actuated
- Hydraulically operated design
- Stainless steel fasteners
- ANSI class 150 and 300 flanges
- Heat-fused red epoxy coating
- Available in globe style

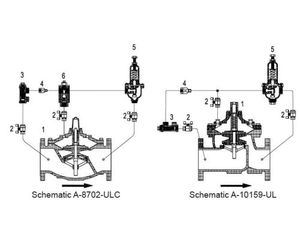

1. Main Valve Body – Model 106-PG-UL, A106-PG-UL, S106-PG-UL, SA106-PG-UL & 106-PG-ULC. See chart for options.
2. Lockable Isolation Valve J0044A – optional
3. Strainer J0098A – Standard 4" / 100 mm and larger
4. Fixed Restriction
5. Pressure Reducing Pilot Model 161-PR-UL, and 160-PR-ULC
6. Flow Stabilizer – Model 26 (ULC ONLY)
Standard materials for pilot system components are:
- ASTM B62 bronze or ASTM B16 brass
- AISI 303 / 316 stainless steel trim
- Buna-N / EPDM diaphragm and seals
