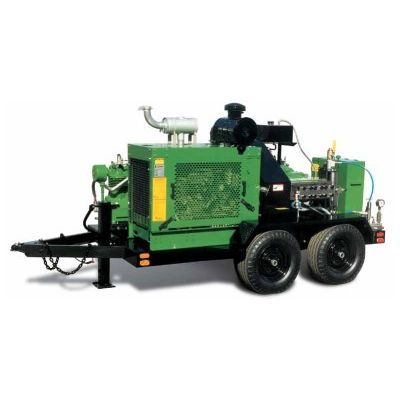

NLB Ultra-Clean 40 - Model 40201D -Ultra-High Pressure Water Jetting System

The NLB Model 40201D WaterJet System combines the power of UHP waterblasting with the dependability of a slow-running plunger pump design that has been proven in countless applications for over 40 years.

With pressures up to 40,000 psi (2,800 bar) and a flow rate of 6.0 gpm (23 lpm), the 40201D has the flexibility to perform a wide variety of water jetting applications, and allows for dual operator capability. Several of most common applications include surface preparation, cleaning, coating removal, and cutting. Since the unit`s power comes from a slow-running triplex plunger pump, wear and maintenance are minimized. You save money on parts and have more uptime in the field.

• The slow running plunger pump is built from high-grade stainless steel and provides unprecedented reliability.
• Lightweight and trailer mounted for ease of mobility.
• Pump can be converted to operate at pressures of 10,000 or 20,000 psi.
• On-board air compressor to power multiple accessories.
• A remote accessory manifold includes pressure gauge, rupture disc and by-pass valve.
• Water pressure sensing throttle control monitors operator demand and adjusts output.

A six cylinder diesel engine rated for 185 HP (138 kw) on a continuous duty basis. It includes a heavy duty clutch power take off, 12 volt electric start, fully shrouded engine, exhaust muffler and battery.

• Dual axle design
• 16.5" wheels (419 mm)
• D.O.T. lighting package
• Heavy-duty gusseted fenders
• Electric brakes
• Acrylic enamel paint
• Max. Size: 7` 6" Wide (1.68 m) x 7`4" high (2.24 m) x 195" long (4.95m)
• Weight: 8,660 lbs. (3,937 kg)

• Size: 5`5" Wide (1.68 m) x 10`8" Long (3.3 m) x 5`8" High (1.68 m)
• Weight 8,000 lbs. (3,650 kg)

• Slow running NLB Model 36200 pump
• Belt drive with guard (optional gear pac)
• 80 Gallon (300 l ) fuel tank
• 40 Gallon (150 l ) stainless steel water tank
• Dual water inlet filters (10 and 6 micron absolute)
• Three plunger positive lubrication
• All necessary plumbing and operating controls
• BV36-115 Pressure adjusting by-pass valve
• On-board compressed air - 52 cfm (24.5 l/sec)
• Oil filled pressure gauge and rupture disc assembly

• NLB NCG8450A-3 rotating cleaner
• VertaJetning lance
• SPIN JET® floor and grate clea
