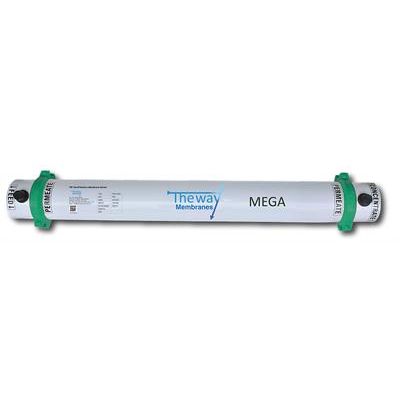

Mega - Model TW90/800 -Ultrafiltration Membrane

Membrane polymer PVDF/PES/PS. MWCO 100/67/50/20 KDa. Size of the fibre 1.2 mm OD. MOC of housing uPVC. Operating pressure < 3 bar. Trans-membrane pressure 2 bar max. Flow Out-In. Operating pH 1-13. Operating temperature 45  C. Operating mode Cross flow. Filtrate flux m 2 50-100 L/ m 2/hr . Backwash flux  100-300 L/m2/hr. Backwash pressure 2 bar max.
