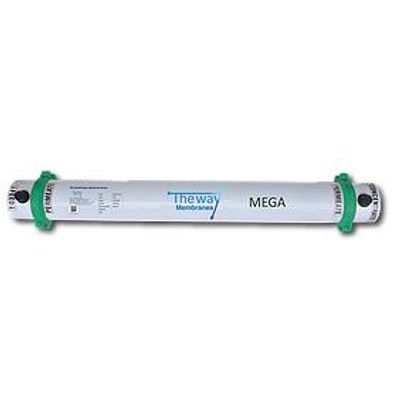

Mega - Model TW200/1650 -Ultrafiltration Membrane

Type Hollow Fiber.  MOC Membrane PES. Body PVC . Potingng Epoxy . Cap PVC/PP . MWCO  100 KDa. Area 80 m 2. Size of Fiber 1.4mm OD X 0.8 mm ID. Flow Out-In. Operating Mode Cross Flow . Feed Pressure 3 Kg/cm 2 Max. Tr Memb Pressure 1 Kg/cm 2  Max. Backwash Pressure 2 Kg/cm 2 Max. Operating pH 1 to 13. Operating Temp 45 Deg C. Feed Flux 50-100 L/m 2 /Hr. Backwash Flux 100-300 L/m 2 /Hr. Filtratioon Time 10-60 Mins. Backwash Time 1-10 Mins. Flush Time 1-10 Mins.
