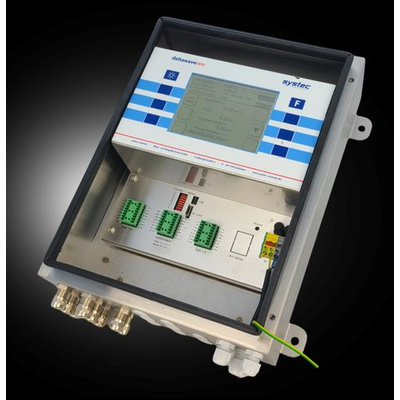

Systec - Model deltawaveVER2 -Ultrasonic Flowmeter for Pipes

deltawaveVER2 is an ultrasonic flow metering system for water and wastewater in a wide range of applications, for example in filled pipes, partially filled pipes, open channels and rivers. The multi-path flow meter system permanently monitors itself and works even under extreme conditions maintenance- and calibration-free and extremely reliable. For district heating applications with highest demands there are especially high temperature transducers.

deltawaveVER2 can be optimally used in the water and wastewater industry, in sewage treatment plants in industry and municipal utilities, in thermal power plants, in penstock and low head river hydro power plants.

New deltawaveVER2 brings a lot of benefits that make it even easier, more accurate and cheaper as the predecessor and most competitors:

• Affordable 2-path entry-level solution for smaller sewage treatment plants and micro-hydropower
• 4- and 8-path solutions for highest accuracy requirements
• Low power consumption for solar operation
• Easy commissioning through parameterization software
• Bus connection (Modbus / MBus)
• Removable SD card for "unlimited" datalogging, setup and updates
• Extensive diagnostic and analysis tools on the graphic display

The use of deltawaveVER2 offers many advantages:

Flow measurements independent of temperature, pressure, density and viscosity changes, virtually no pressure losses, retrofitting without line interruption is possible, maintenance-free, standardized discharge equations according to ISO6416, IEC 60041 and ASME PTC 18, continuous flow measurement, high accuracy, detection of flood events without "fast emergency teams", huge data storage, Industry 4.0 communication interfaces (USB, Modbus, M-Bus), datalogging of velocity profiles, flood monitoring, monitoring compliance with environmental regulations eg. in hydroelectric power plants, discharge monitoring in sewage treatment plants. In addition, navigability monitoring is one of the areas of application of deltawaveVER2.

When it comes to the precision and process capability of our products, we make no compromises. Our ultrasonic transducers withstand pressures far exceeding 100 bar and deliver stronger, more accurate signals than competitive products. Because ultrasonic signals can be disturbed by numerous influencing factors, systec Controls has developed an innovative signal analysts strategy for deltawaveVER2, which finds the ultrasonic signals even if the amplitude of the noise is a multiple of the signal amplitude. Through our intelligent evaluation strategies, we analyse each individual acoustic signal for quality and plausibility. We can therefore rule out incorrect measurements. Our multi-frequency / multi-signal method finds the optimum ultrasonic signal even under unfavorable conditions such as high gas and particle load of the fluid. In the vast majority of cases, we can also safely operate ultrasonic transducers from third-party suppliers.

The result is accurate, reliable and stable measurement data even under extremely unfavorable conditions. The deltawave electronics measure the transit time difference between the ultrasonic signals traveling with and against the flow direction with incredible precision, even at very low flow velocities. Several paths lead to the goal: The determination of the flow velocity is based on the ultrasonic transit time method: Two ultrasonic transducers emit sound waves into the medium at an angle α (15 - 75 °).

deltawave supports cross-over measurement, where two acoustic paths are installed at each measurement level and their measured speed values are averaged. The high measuring accuracy of deltawave was, among others, determined, verified and confirmed by the Research Institute for Environmental Technology and Hydraulic Engineering (VPUW) at the University of Kassel.

A smart product like deltawaveVER2 also needs smart service. It begins with the free easy-to-use setup software and ends with a comprehensive after-sales service for our customers. With the supplied Windows software, deltawave can be comfortably and simply prepared for the measurement even for very complex applications. All parameters can be stored fully automatically from the workstation PC or laptop on a standard SD-card and read into the device. Alternatively, deltawave can also be connected to the intranet or internet via Modbus or M-Bus and configured and updated via USB in a user-friendly way.

Remote transmission systems via GSM modem using the digital and analog signal outputs are also possible. And for added ease of use, the built-in oscilloscope feature allows you to visualize the signals as well as easily and quickly review all acoustic paths.

Of course, we are also after the purchase and installation of your system at your side to advise and support you. On request, our sales representatives and service technicians will support you on site. Whatever the challenge, we are always there for you and will certainly help you!

Further information on our deltawave product range can be found in the PDFs at the bottom of the download area on this page.

Do you have questions about our innovative ultrasonic flow measuring system for water and wastewater?

Talk to us. We look forward to hearing from you and are happy to help.

Because of the high accuracy, field acceptance tests of hydraulic turbines, storage pumps and pump-turbines are possible due to ISO60041 and ASME PTC 18. Accuracies up to 1% could be achieved in open channels without calibration.

In filled pipes or channels you will get an accuracy of 0.5% of reading. But there is more to measuring with deltawave than just accuracy. The optimized transducers ensures long-term stable measuring without maintenance. This has been proven successfully by public authorities.
