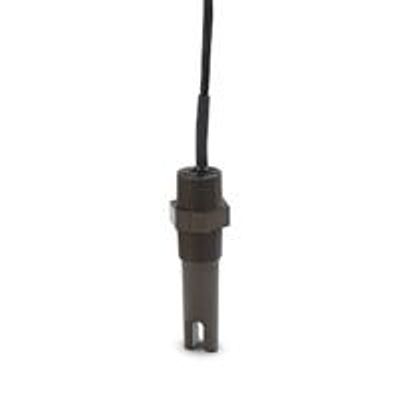

GF Signet - Model 2284 -Ultrasonic Gap Switch
The Ultrasonic gap switch consists of Polyphenylene Sulphide (PPS) and is high corrosion resistant in most liquids. The gap switch is designed for high or low level alarm in different tank applications as well as pump control. However, if there is a liquid present, the signal will be transmitted across the gap and the integral electronics will switch the output circuitry to signal the presence of a liquid.
Most popular related searches
water pump controller
water pump control
pump controller
water pump
demineralized water
RoHS compliance
water control
well pumping
well pump
water control system
It can be mounted in any position in a tank using a 3/4" or 1" thread available in BSP and NPT thread forms.
- Ultrasonic Principle
- Power Supply: 18 to 30 VDC / AC
- Switching Function: SPCO Relay NO/NC
- Sensor body: PPS
- Max. Voltage Rating: 30 VDC / AC
- Cable Type: 5-core 7/0.2mm, 3m
Advantages:
- No moving parts
- Self contained full plastic body
- Compact sensor for narrow spaces
- Small in-tank dimensions
- 1" and 3/4" threaded mounting
- Corrosion resistant PPS body
- Relay output
Fields of Application:
- Demineralized water
- Pump control
- Chemicals
- Water/Glycol solutions
- Coolinq water
Standards:
- CE
- RoHS Compliant
