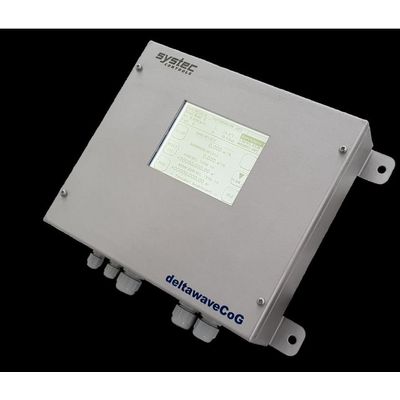

Systec - Model deltawaveCoG -Ultrasonic Gas Flow Meter
Dive into the field of high-precision, non-contact ultrasonic gas flow measurement with deltawaveCoG, expertly developed for accurate clamp-on gas (CoG) flow measurement that seamlessly combines ease of use and careful attention to airflow and gases in pipelines. This specialized system from systec Controls incorporates the latest technologies in compressed air monitoring and natural gas flow measurement using a non-intrusive, clamp-on method that ensures the operational integrity of the pipeline.
Simple and safe: Ultrasonic flow meter for gas using clamp-on technology
To ensure accurate and comprehensive data acquisition, ultrasound gas flow meter deltawaveCoG is also an integrative volume corrector, providing a variety of values including flow rate, volume, standard flow and total mass, among others. It also harmonizes the compensation and acquisition of pressure and temperature values via analog inputs and PT100.
Reliable and user-friendly: the ultrasound gas flow meter deltawaveCoG
The technology of ultrasonic gas flow meters is thoroughly incorporated in the deltawaveCoG, which is not only a reliable ultrasonic gas flow meter, but in addition is suitable for a variety of application scenarios. With a clear graphical display and accelerated setup options, the flow meter for (natural) gas deltawaveCoG can be parameterized in a remarkably short time, guided by the integrated on-screen help. The auto-optimizer optimally adapts the measurement parameters to your line. And the robust mounting kit allows for quick and stable installation of the transducers.
- Principle : Ultrasonic time of flight
- Pressure and temperature compensation : Integrated
- - Input of pressure and temperature as default value
- - Input of pressure and temperature as 4 ... 20 mA analogue value
- - Measurement of the temperature by means of PT100
- Pipe Sizes : 25...700 mm
- Pipe materials : Carbon steel, stainless steel, plastics
- Mounting : Z-mode
- Mounting type : Fluid-contact-free with clamp on transducers
- Flow range : -30…30 m/s
- Measurement : Flow rate, flow velocity, standard volume flow
- Totalizer : Volume, standard volume
- Inputs : 2x 4...20mA (pressure and temperature)
- 2x PT100 (3-wire)
- Outputs : 1x relay, 2×4...20mA, 1x digital (transistor), 1x USB socket (Mini B)
- Interfaces (optional) : RS485, Modbus,
- Power supply : 230VAC bzw. 18-36VDC
- Protection class : IP65
- Media : Air and natural gas, other gases possible on request
- Media Temperature : -40….150°C
- 100% Contact-free with the medium
- 100% Wear-free
- 100% Leakage proof
- 100% Hygienic
- 100% Pressure loss free
