Cubic Instruments - Model USM Series - G2.5-G4 -Ultrasonic Gas Meter Module

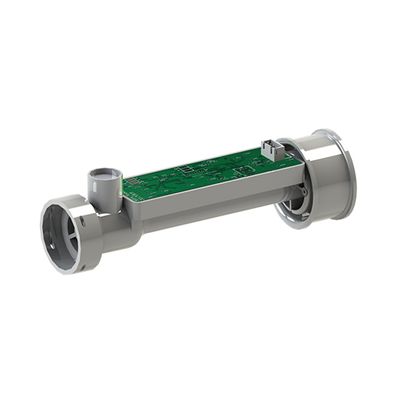

Ultrasonic Gas Meter Module G2.5-G4 uses a pair of ultrasonic gas transducers that installed oppositely at upstream and downstream, based on TOF (Time of Speed) principle to measure flow velocity of gas medium, with built-in temperature and smart software algorithm, consumed gas volume can be calculated and displayed on meter’s screen. PCI patented L shape gas flow channel, the effective distance between two transducers are longer, which facilitates the measurement accuracy, it`s also anti-contamination that guarantees long-term stability of accuracy.
• Compact size, high accuracy achieved accuracy class 1.5;
• No moving parts, noiseless operation, high corrosion resistance;
• In-built temperature & pressure measurement for different application demand;
• Direct output with instant flow rate, convenient for secondary development;
Easy operation and simple installation in field;
• UART/TTL interface for output;
• Optimized structure, stable flow distribution, contamination resistance;
• Low power consumption;
• Mass production capacity with low cost.
